Controller A12A~A15A

Location: MegaMatrix

Gallery

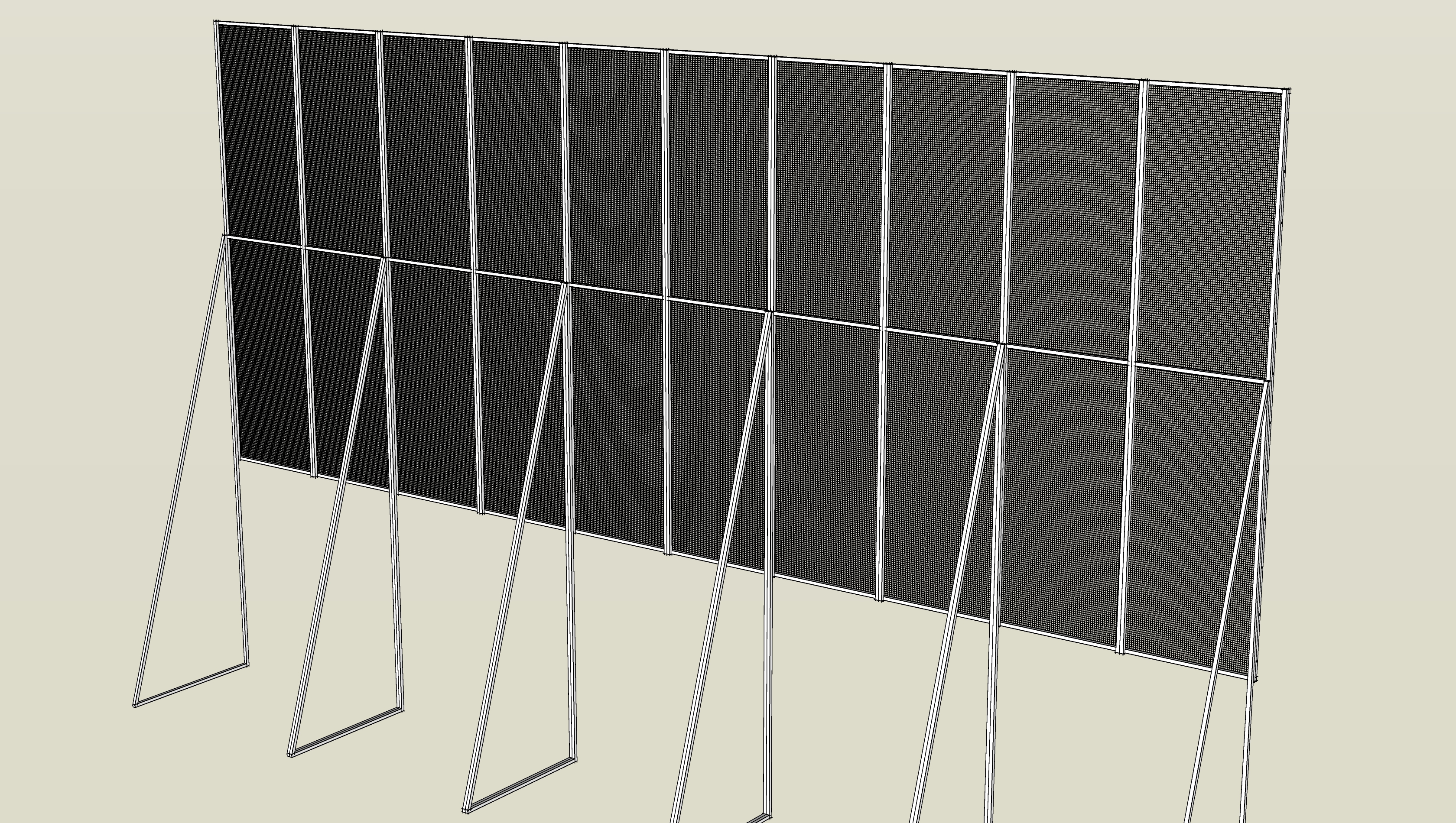

Setup Photos image 1 for controller A12A~A15A

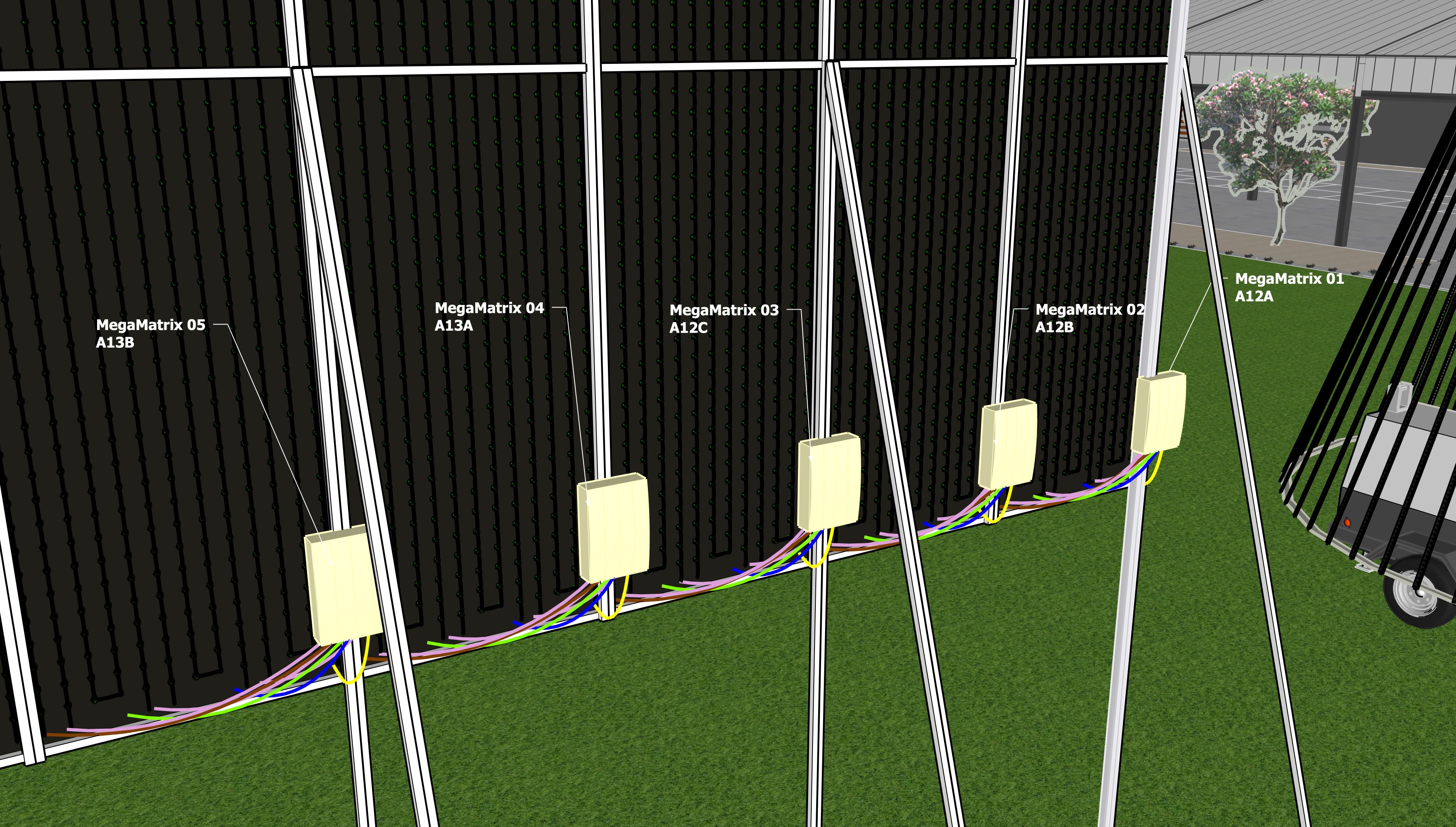

Setup Photos image 2 for controller A12A~A15A

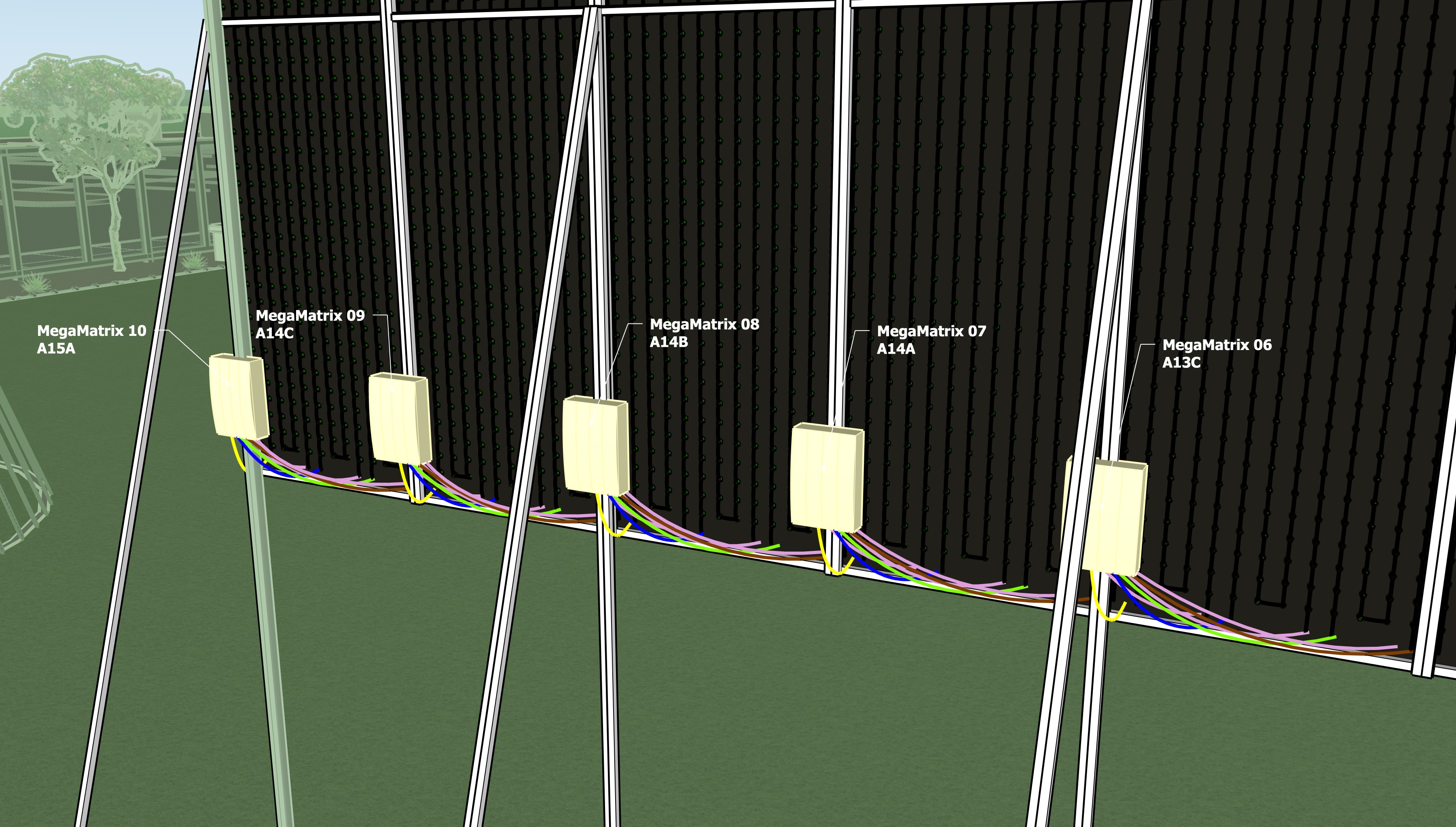

Setup Photos image 3 for controller A12A~A15A

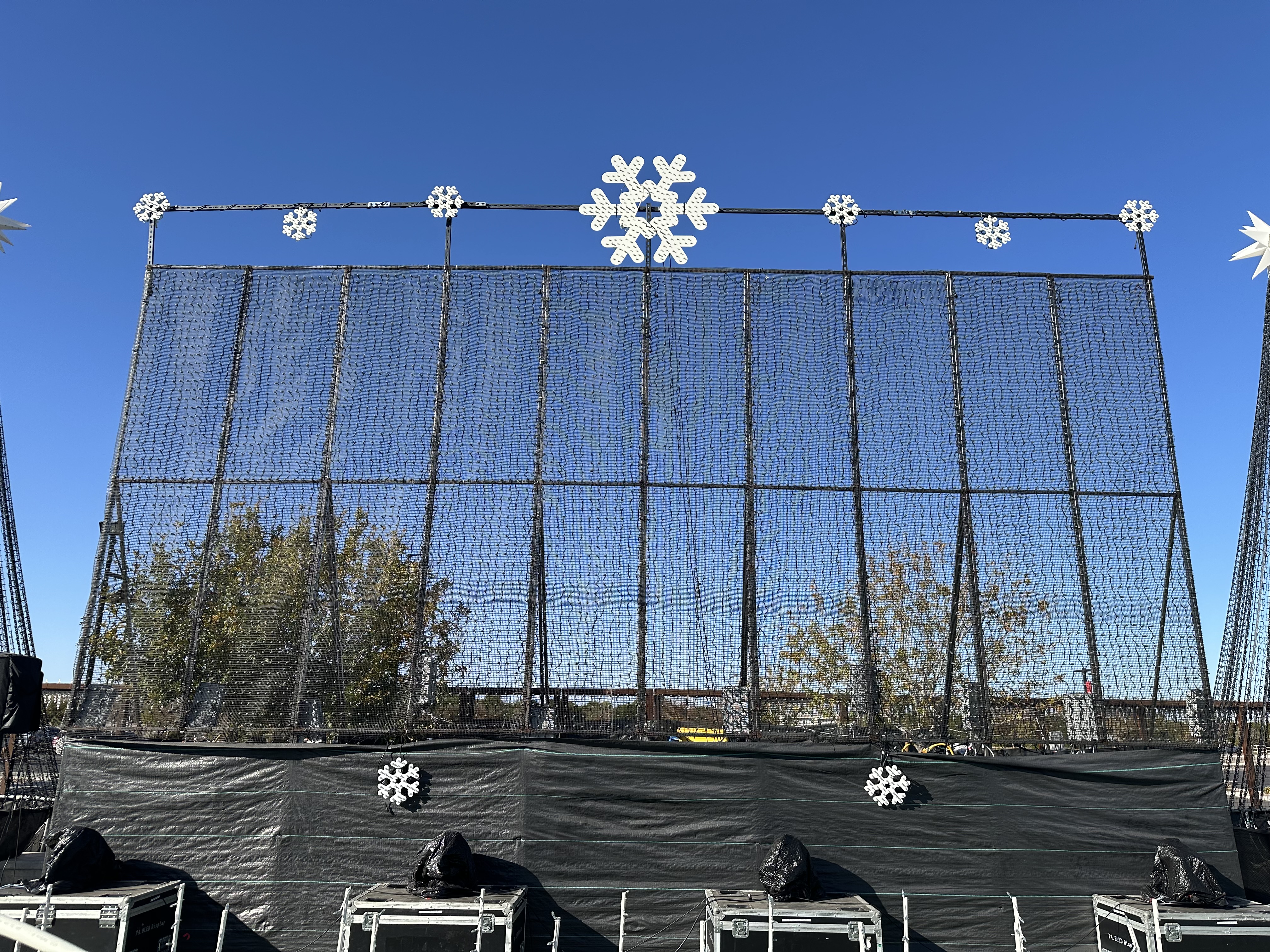

Reference Photos image 1 for controller A12A~A15A

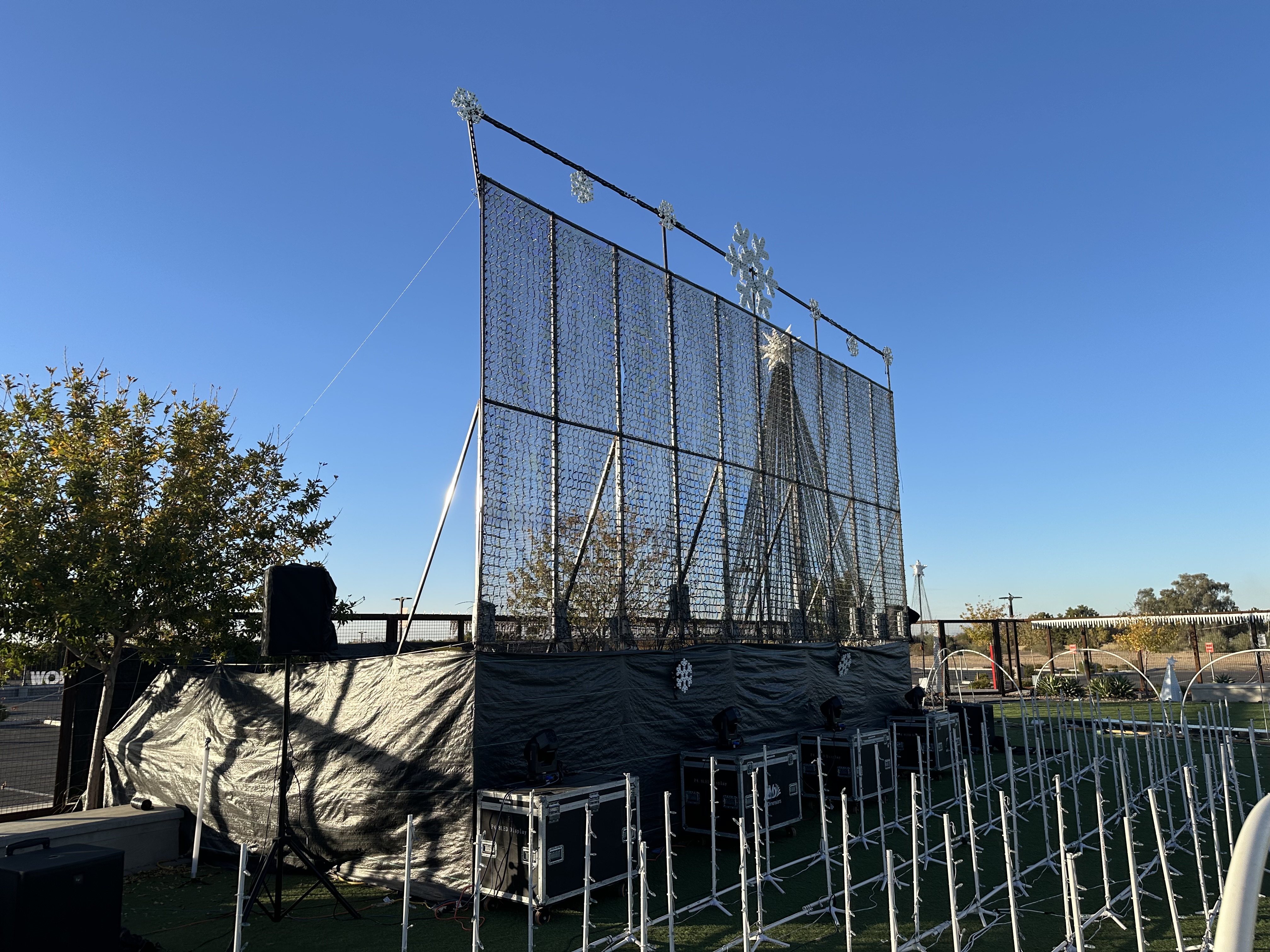

Reference Photos image 2 for controller A12A~A15A

Reference Photos image 3 for controller A12A~A15A

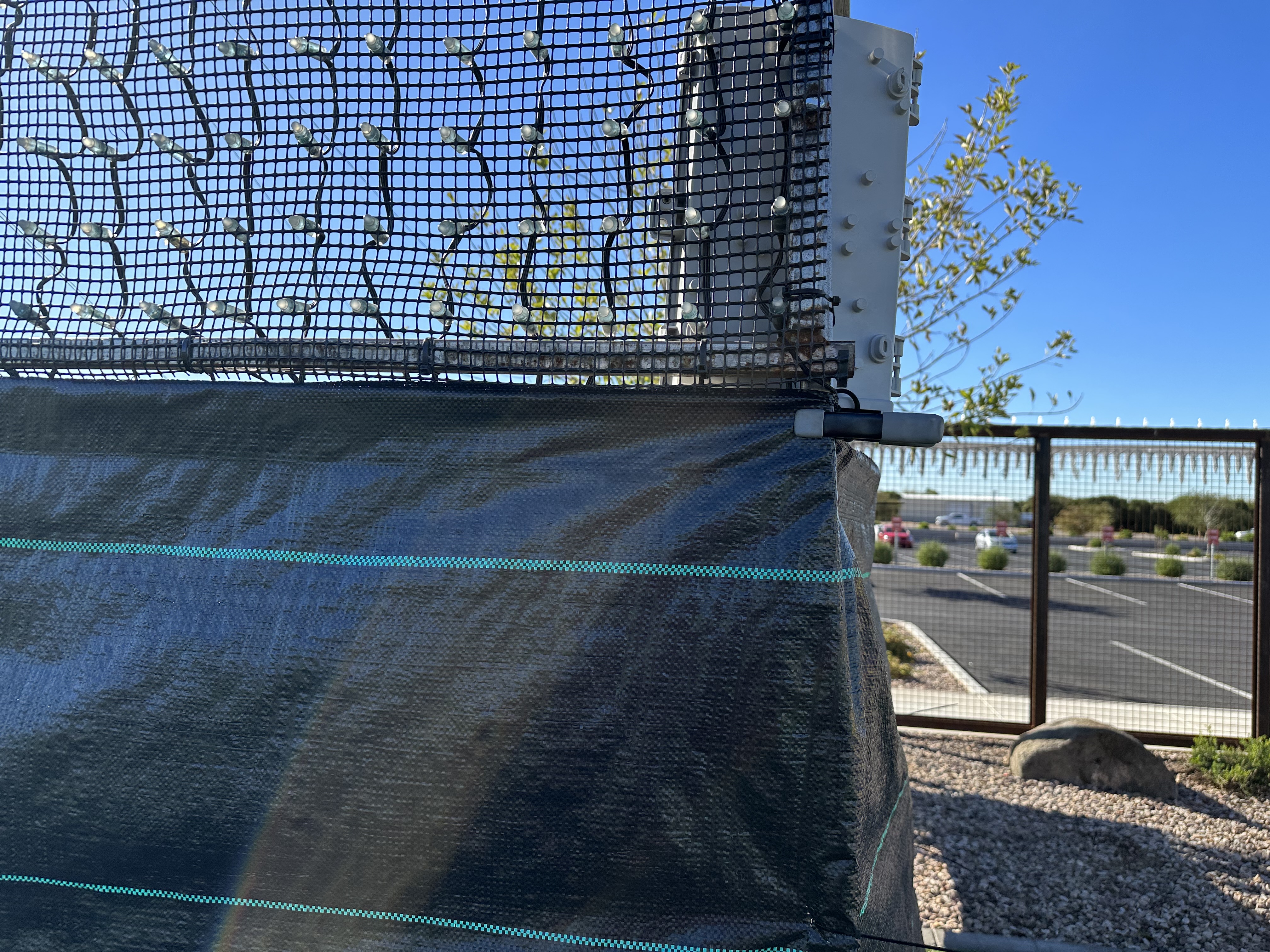

Reference Photos image 4 for controller A12A~A15A

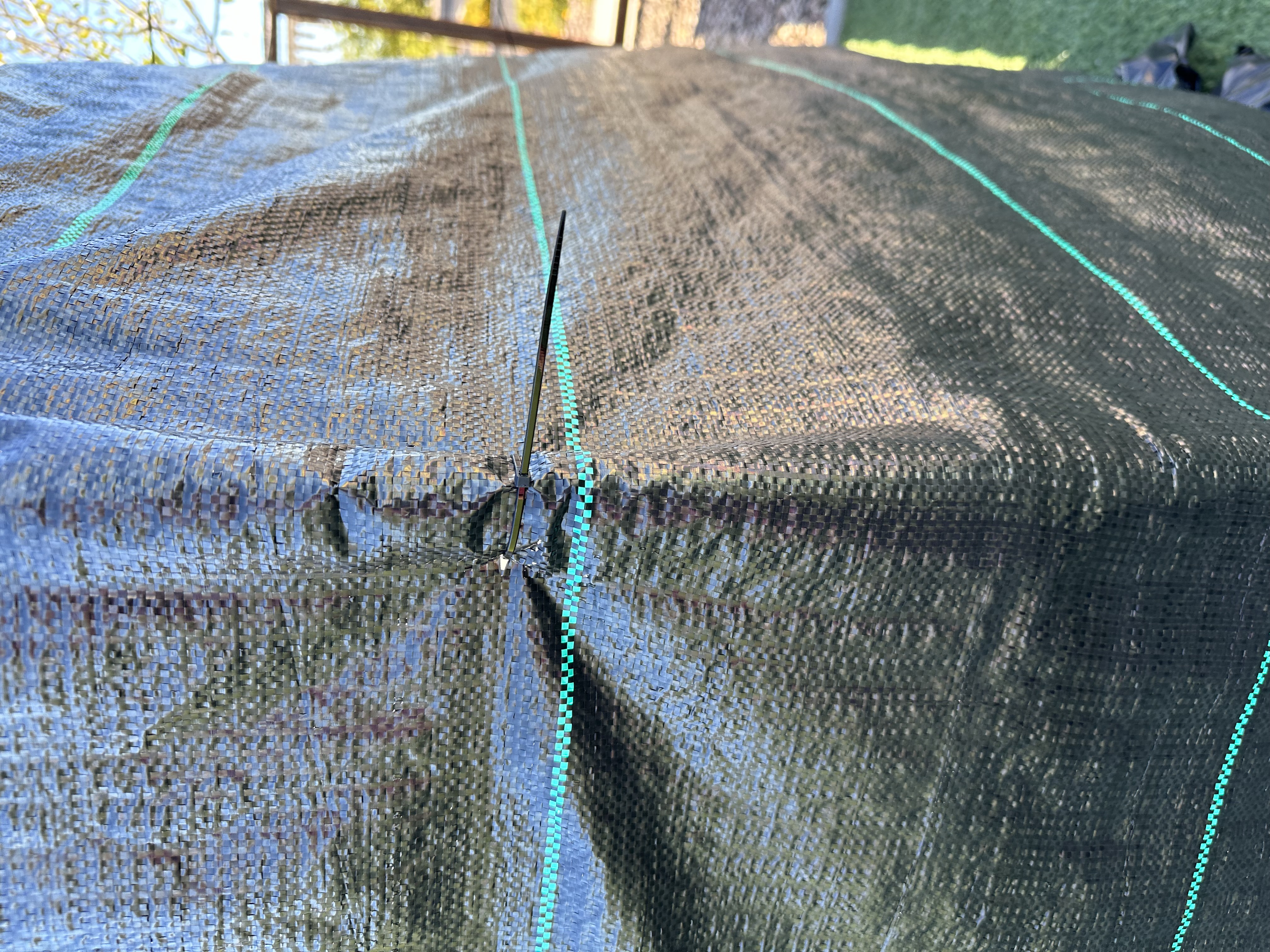

Reference Photos image 5 for controller A12A~A15A

Reference Photos image 6 for controller A12A~A15A

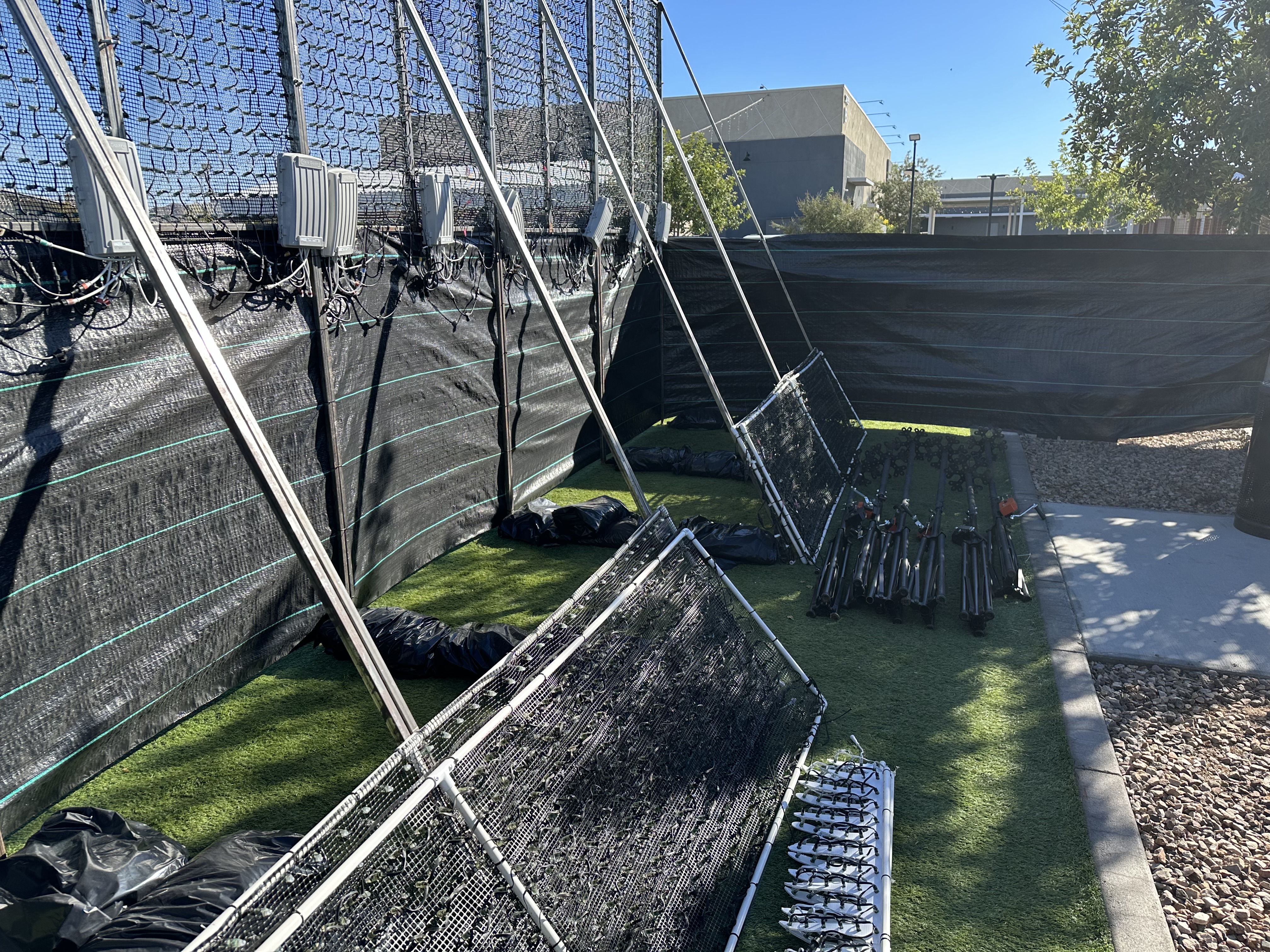

Reference Photos image 7 for controller A12A~A15A

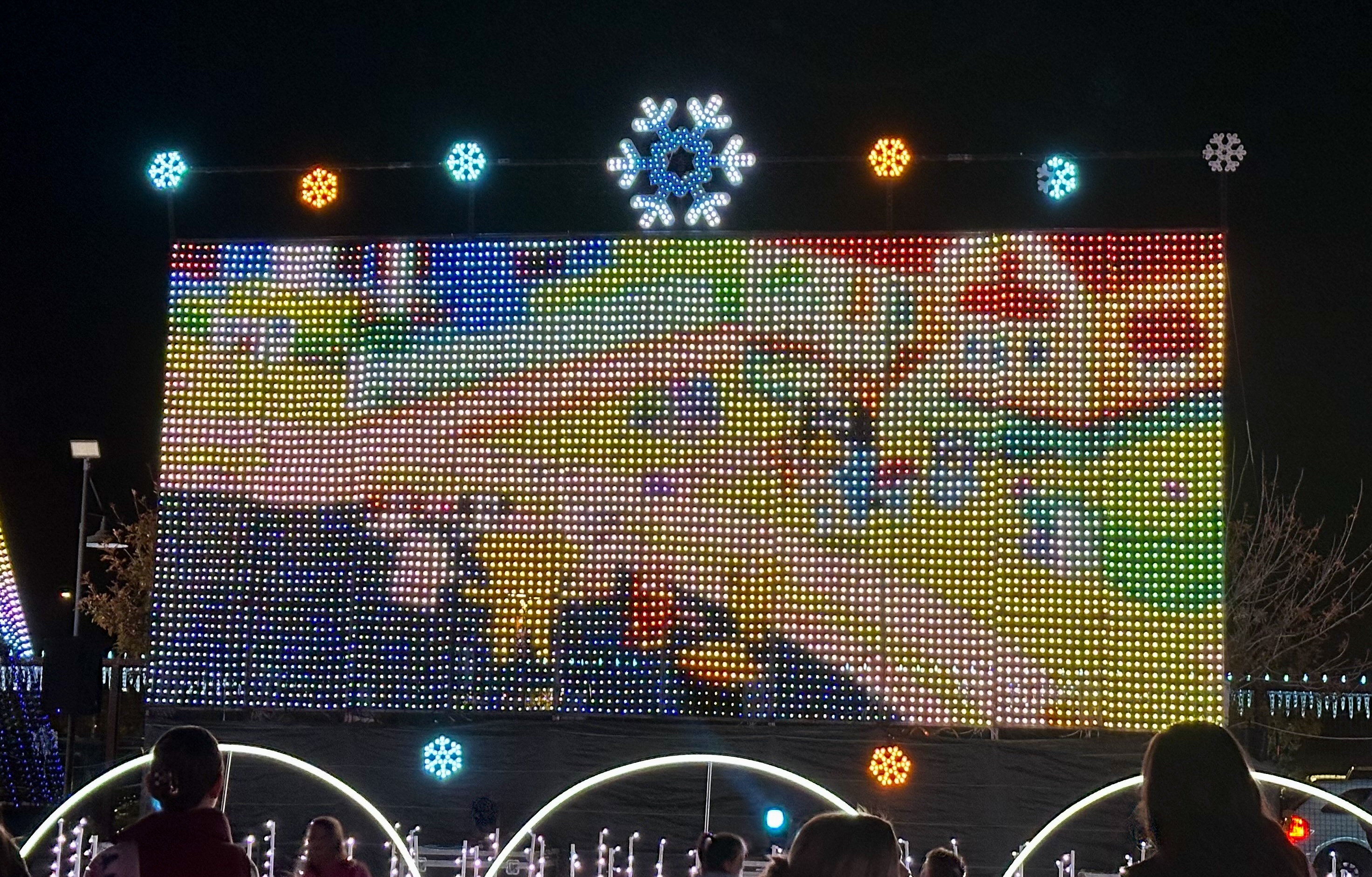

Reference Photos image 8 for controller A12A~A15A

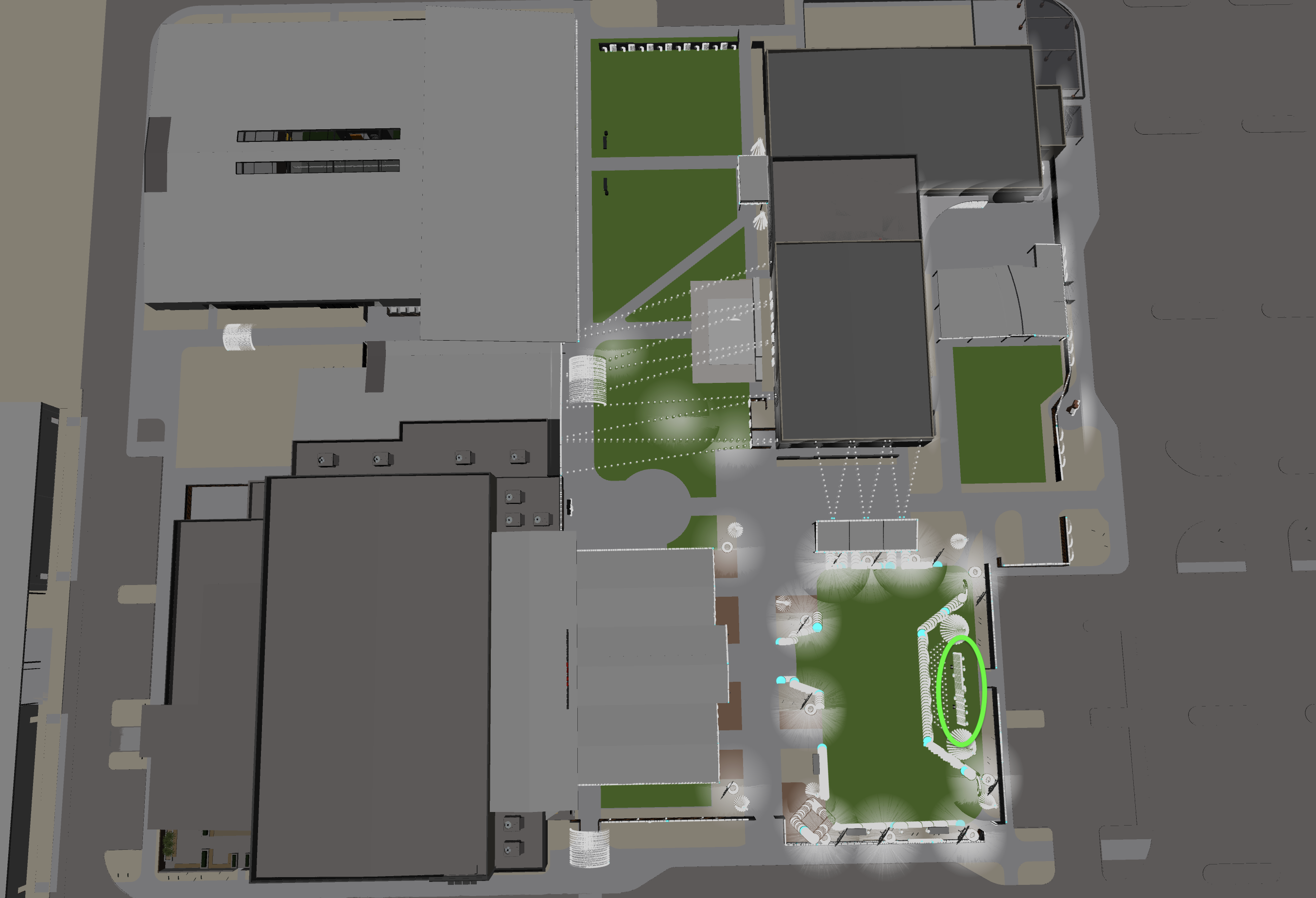

Site Map image 1 for controller A12A~A15A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Smart Receiver	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Prop 2 Name	Cable Length (3)	Prop 3 Name	Px Count (3)	Prop 4 Name
K8PB.A	21	21A	A12A	12	A12A	K8PB.A	640	600	200	40	A12A	12	750	0.6	50	60	195	MegaMatrix 01	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	22	22A	A12A	12	A12A		640	600	200	40	A12A	12	750	0.6	50	60		MegaMatrix 01	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	23	23A	A12A	12	A12A		640	600	200	40	A12A	12	750	0.6	50	60		MegaMatrix 01	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	24	24A	A12A	12	A12A		640	150	50	490	A12A	12	750	0.6	50	15		MegaMatrix 01	5	MegaMatrix 01.07	50
K8PB.A	21	21B	A12B	12	A12B	A12A	640	600	200	40	A12B	12	750	0.6	50	60	585	MegaMatrix 02	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	22	22B	A12B	12	A12B		640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 02	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	23	23B	A12B	12	A12B		640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 02	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	24	24B	A12B	12	A12B		640	150	50	490	A12B	12	750	0.6	50	15		MegaMatrix 02	5	MegaMatrix 01.07	50
K8PB.A	21	21C	A12C	12	A12C	A12B	640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 03	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	22	22C	A12C	12	A12C		640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 03	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	23	23C	A12C	12	A12C		640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 03	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	24	24C	A12C	12	A12C		640	150	50	490	A12B	12	750	0.6	50	15		MegaMatrix 03	5	MegaMatrix 01.07	50
K8PB.A	25	25A	A13A	13	A13A	K8PB.A	640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 04	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	26	26A	A13A	13	A13A		640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 04	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	27	27A	A13A	13	A13A		640	600	200	40	A12B	12	750	0.6	50	60		MegaMatrix 04	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	28	28A	A13A	13	A13A		640	150	50	490	A12B	12	750	0.6	50	15		MegaMatrix 04	5	MegaMatrix 01.07	50
K8PB.A	25	25B	A13B	13	A13B	A13A	640	600	200	40	A13B	12	750	0.6	50	60	585	MegaMatrix 05	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	26	26B	A13B	13	A13B		640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 05	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	27	27B	A13B	13	A13B		640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 05	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	28	28B	A13B	13	A13B		640	150	50	490	A13B	12	750	0.6	50	15		MegaMatrix 05	5	MegaMatrix 01.07	50
K8PB.A	25	25C	A13C	13	A13C	A13B	640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 06	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	26	26C	A13C	13	A13C		640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 06	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	27	27C	A13C	13	A13C		640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 06	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	28	28C	A13C	13	A13C		640	150	50	490	A13B	12	750	0.6	50	15		MegaMatrix 06	5	MegaMatrix 01.07	50
K8PB.A	29	29A	A14A	14	A14A	K8PB.A	640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 07	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	30	30A	A14A	14	A14A		640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 07	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	31	31A	A14A	14	A14A		640	600	200	40	A13B	12	750	0.6	50	60		MegaMatrix 07	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	32	32A	A14A	14	A14A		640	150	50	490	A13B	12	750	0.6	50	15		MegaMatrix 07	5	MegaMatrix 01.07	50
K8PB.A	29	29B	A14B	14	A14B	A14A	640	600	200	40	A14B	12	750	0.6	50	60	390	MegaMatrix 08	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	30	30B	A14B	14	A14B		640	600	200	40	A14B	12	750	0.6	50	60		MegaMatrix 08	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	31	31B	A14B	14	A14B		640	600	200	40	A14B	12	750	0.6	50	60		MegaMatrix 08	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	32	32B	A14B	14	A14B		640	150	50	490	A14B	12	750	0.6	50	15		MegaMatrix 08	5	MegaMatrix 01.07	50
K8PB.A	29	29C	A14C	14	A14C	A14B	640	600	200	40	A14B	12	750	0.6	50	60		MegaMatrix 09	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	30	30C	A14C	14	A14C		640	600	200	40	A14B	12	750	0.6	50	60		MegaMatrix 09	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	31	31C	A14C	14	A14C		640	600	200	40	A14B	12	750	0.6	50	60		MegaMatrix 09	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	32	32C	A14C	14	A14C		640	150	50	490	A14B	12	750	0.6	50	15		MegaMatrix 09	5	MegaMatrix 01.07	50
K8PB.A	33	33A	A15A	15	A15A	K8PB.A	640	200	200	440	A15A	12	750	0.6	50	60	195	MegaMatrix 10	0	MegaMatrix 01.01	100	Power Cut	0	MegaMatrix 01.02	100	Power End
K8PB.A	34	34A	A15A	15	A15A		640	200	200	440	A15A	12	750	0.6	50	60		MegaMatrix 10	0	MegaMatrix 01.03	100	Power Cut	0	MegaMatrix 01.04	100	Power End
K8PB.A	35	35A	A15A	15	A15A		640	200	200	440	A15A	12	750	0.6	50	60		MegaMatrix 10	5	MegaMatrix 01.05	100	Power Cut	0	MegaMatrix 01.06	100	Power End
K8PB.A	36	36A	A15A	15	A15A		640	50	50	590	A15A	12	750	0.6	50	15		MegaMatrix 10	5	MegaMatrix 01.07	50

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
