Controller A9B

Location: Fence 03

Gallery

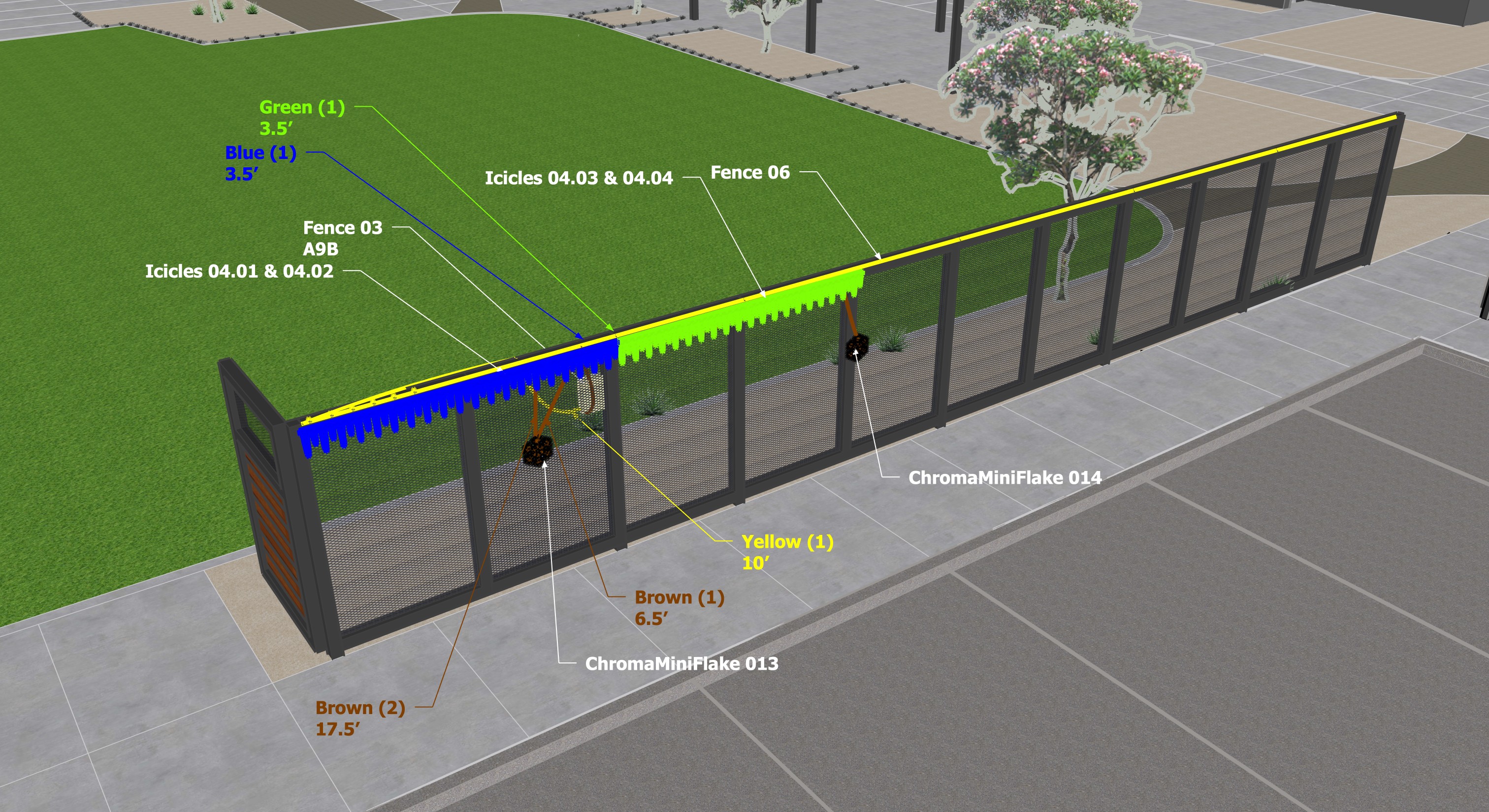

Setup Photos image 1 for controller A9B

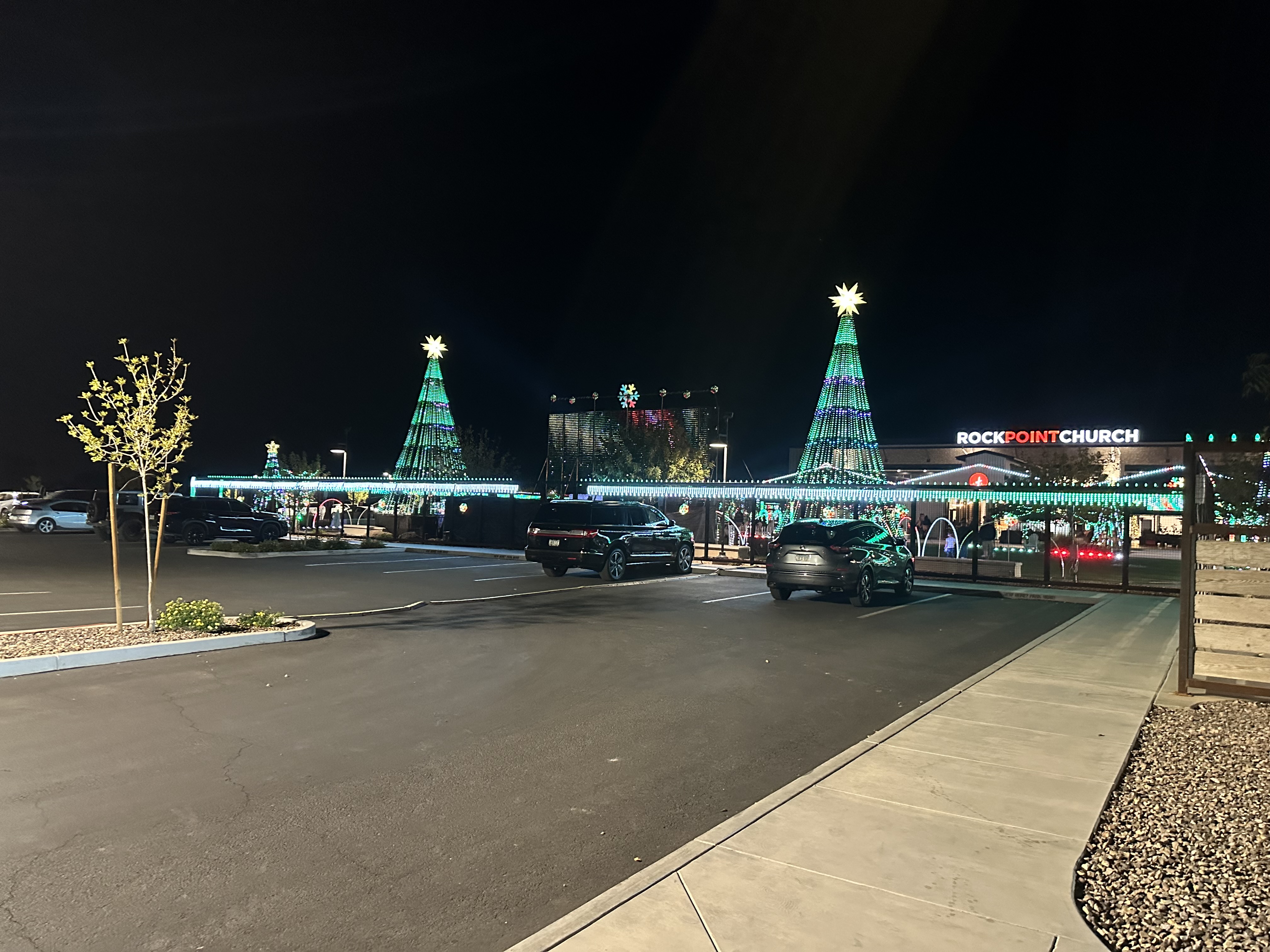

Reference Photos image 1 for controller A9B

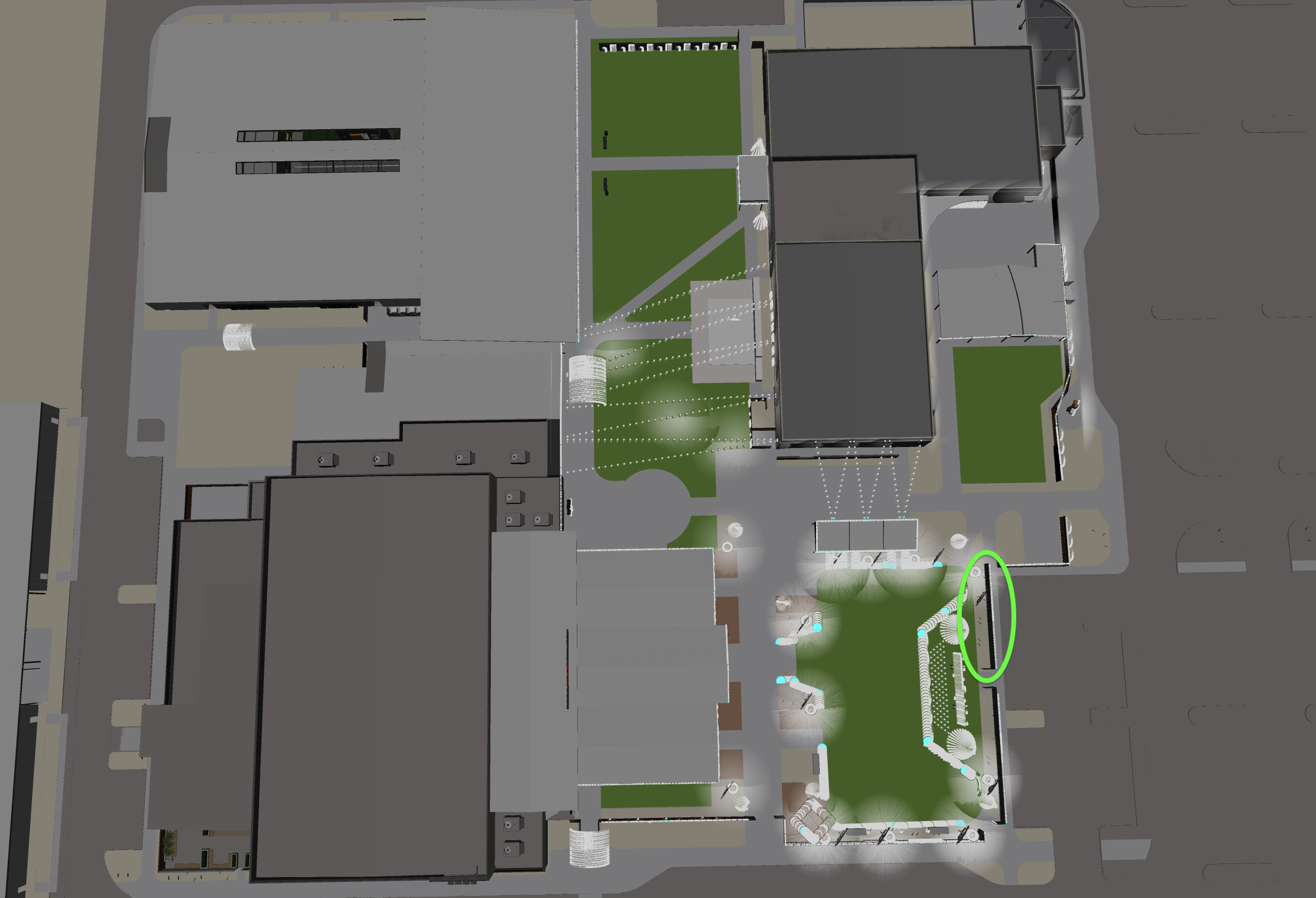

Site Map image 1 for controller A9B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8PB.A	9	9B	A9B	9		A9B		A9A	640	420	100	220	A9B	12	750	0.6	50	30	171.6	Fence 03	10	Fence 06	100
K8PB.A	10	10B	A9B	9		A9B			640	520	200	120	A9B	12	750	0.6	50	60		Fence 03	3.5	Icicles 04.02 (Right)	100	0	Icicles 04.01 (Right)	100
K8PB.A	11	11B	A9B	9		A9B			640	508	200	132	A9B	12	750	0.6	50	60		Fence 03	3.5	Icicles 04.03 (Left)	100	0	Icicles 04.04 (Left)	100
K8PB.A	12	12B	A9B	9		A9B			640	225	72	415	A9B	12	750	0.6	50	21.6		Fence 03	6.5	ChromaMiniFlake 013	36	17.5	ChromaMiniFlake 014	36

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
