Controller E1A

Location: BB Canopy 02

Gallery

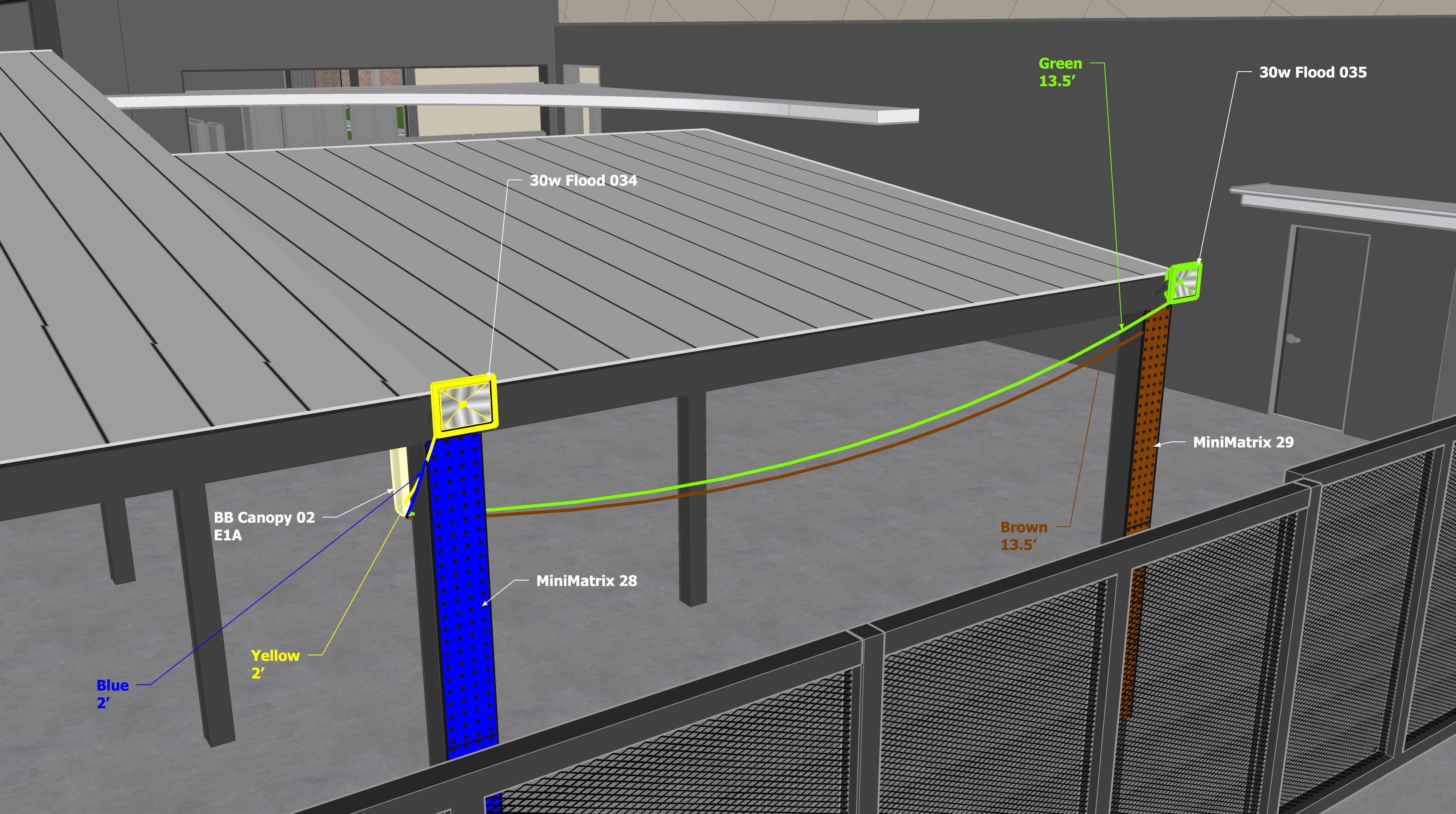

Setup Photos image 1 for controller E1A

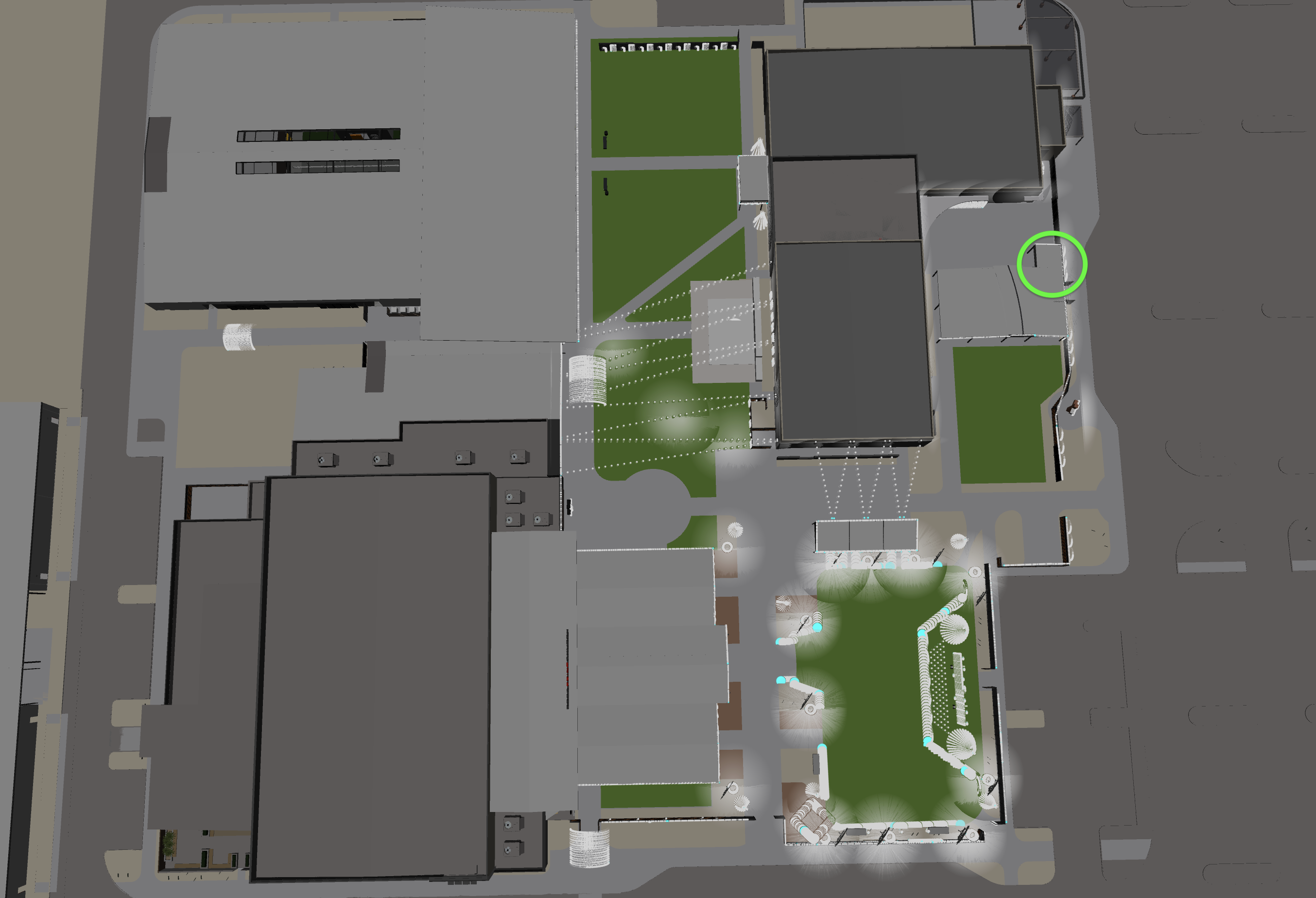

Site Map image 1 for controller E1A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8PB.E	9	9A	E1A	1		E1A		K8PB.E	640	1	1	639	E1A	12	750	10	75	7.5	115.8	BB Canopy 02	2	30w Flood 034	1
K8PB.E	10	10A	E1A	1		E1A			640	168	168	472	E1A	12	750	0.6	50	50.4		BB Canopy 02	2	MiniMatrix 28.2	84	0	MiniMatrix 28.1	84
K8PB.E	11	11A	E1A	1		E1A			640	1	1	639	E1A	12	750	10	75	7.5		BB Canopy 02	13.5	30w Flood 035	1
K8PB.E	12	12A	E1A	1		E1A			640	168	168	472	E1A	12	750	0.6	50	50.4		BB Canopy 02	13.5	MiniMatrix 29.2	84		MiniMatrix 29.1	84

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
