Controller E1C

Location: ChromaFlakes 03

Gallery

Setup Photos image 1 for controller E1C

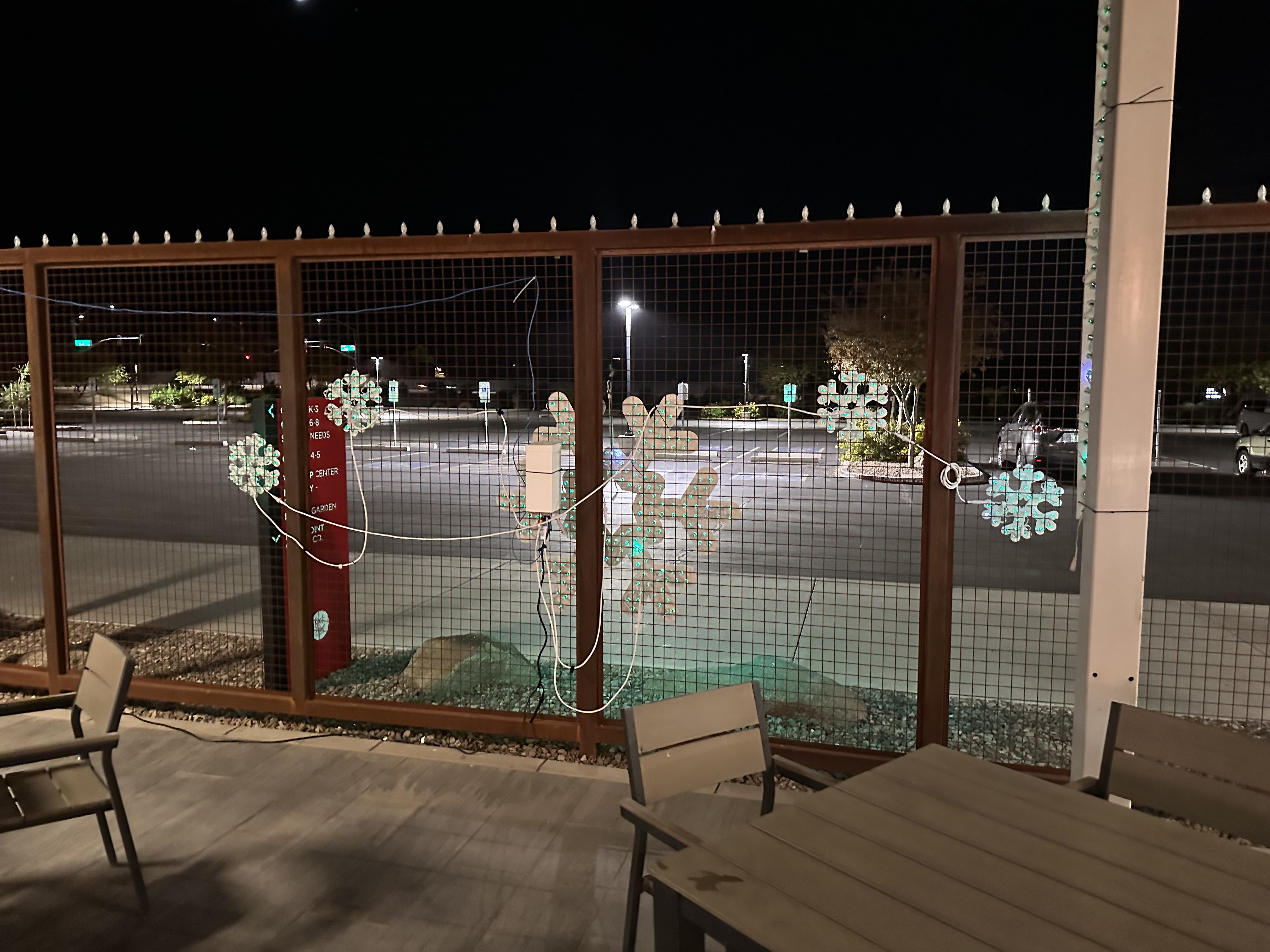

Reference Photos image 1 for controller E1C

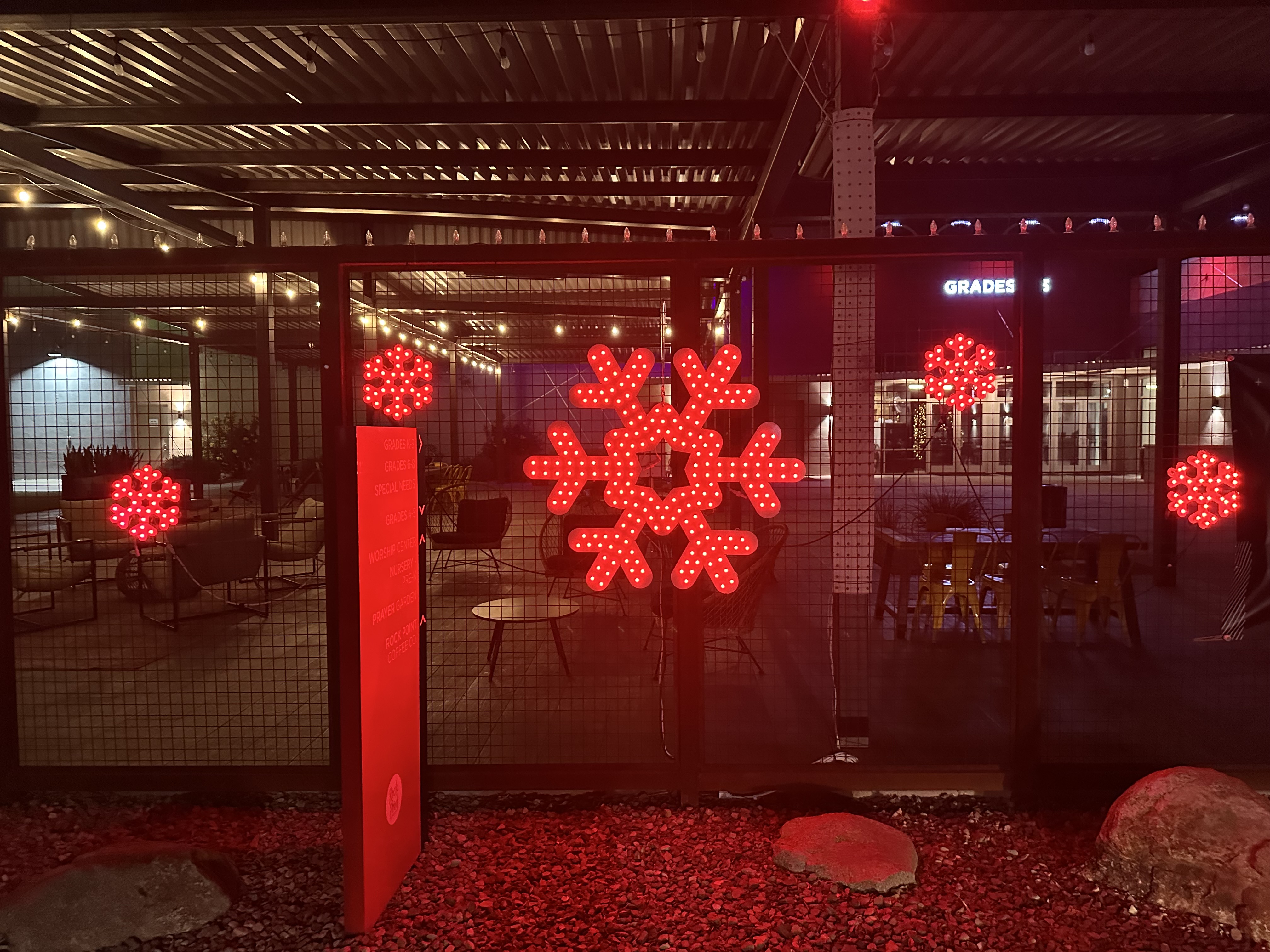

Reference Photos image 2 for controller E1C

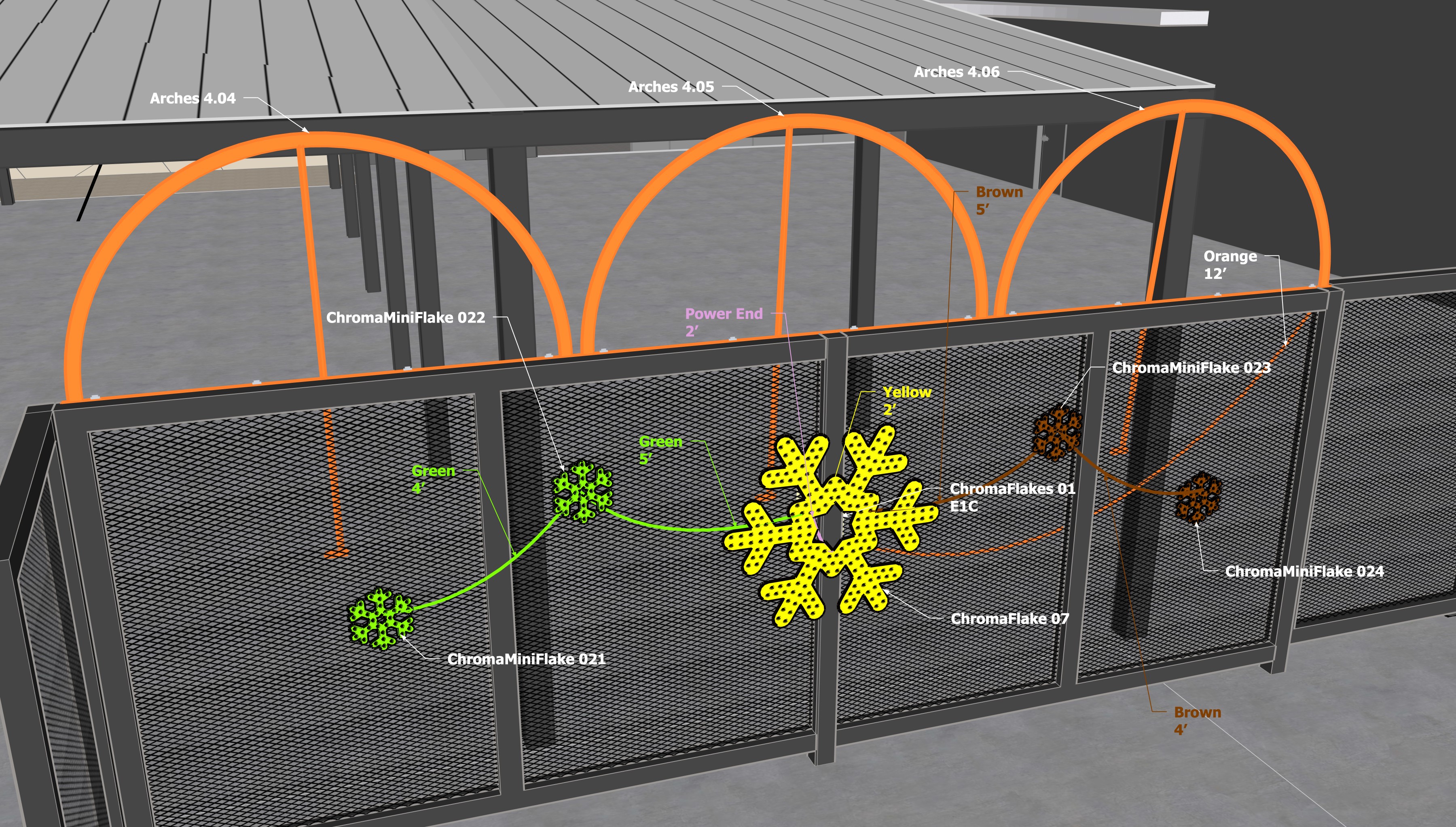

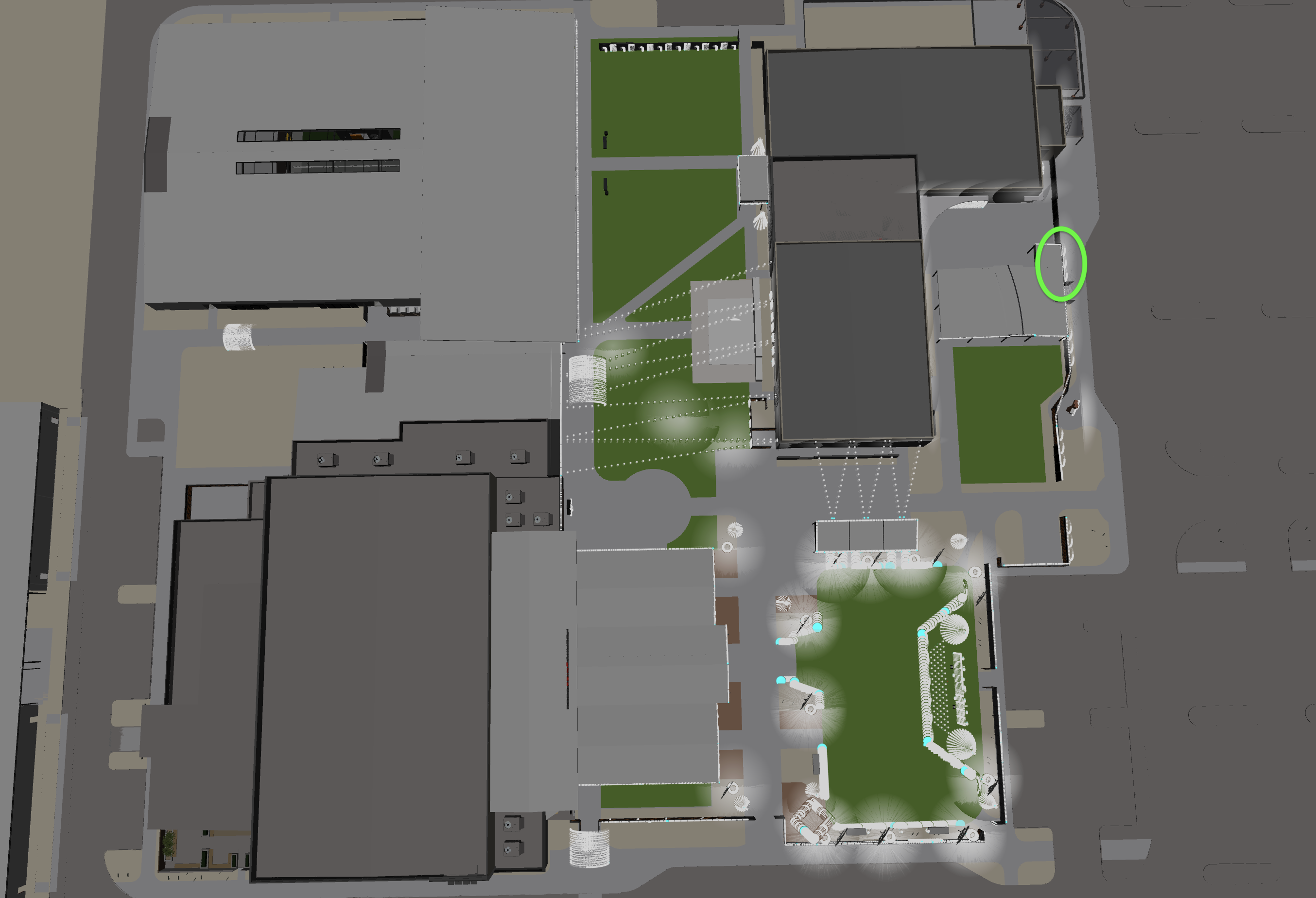

Site Map image 1 for controller E1C

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8PB.E	9	9C	E1C	1		E1C		E1B	640	222	222	418	E1C	12	750	0.6	50	66.6	155.7	ChromaFlakes 03	2	ChromaFlake 07	222	2	Power End
K8PB.E	10	10C	E1C	1		E1C			640	153	153	487	E1C	12	750	0.6	50	45.9		ChromaFlakes 03	5	Arch 04.04	51	0	Arch 04.05	51	0	Arch 04.06	51
K8PB.E	11	11C	E1C	1		E1C			640	72	72	568	E1C	12	750	0.6	50	21.6		ChromaFlakes 03	5	ChromaMiniFlake 022	36	4	ChromaMiniFlake 021	36
K8PB.E	12	12C	E1C	1		E1C			640	72	72	568	E1C	12	750	0.6	50	21.6		ChromaFlakes 03	5	ChromaMiniFlake 023	36	4	ChromaMiniFlake 024	36

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
