Controller E3A

Location: ChromaFlakes 02

Gallery

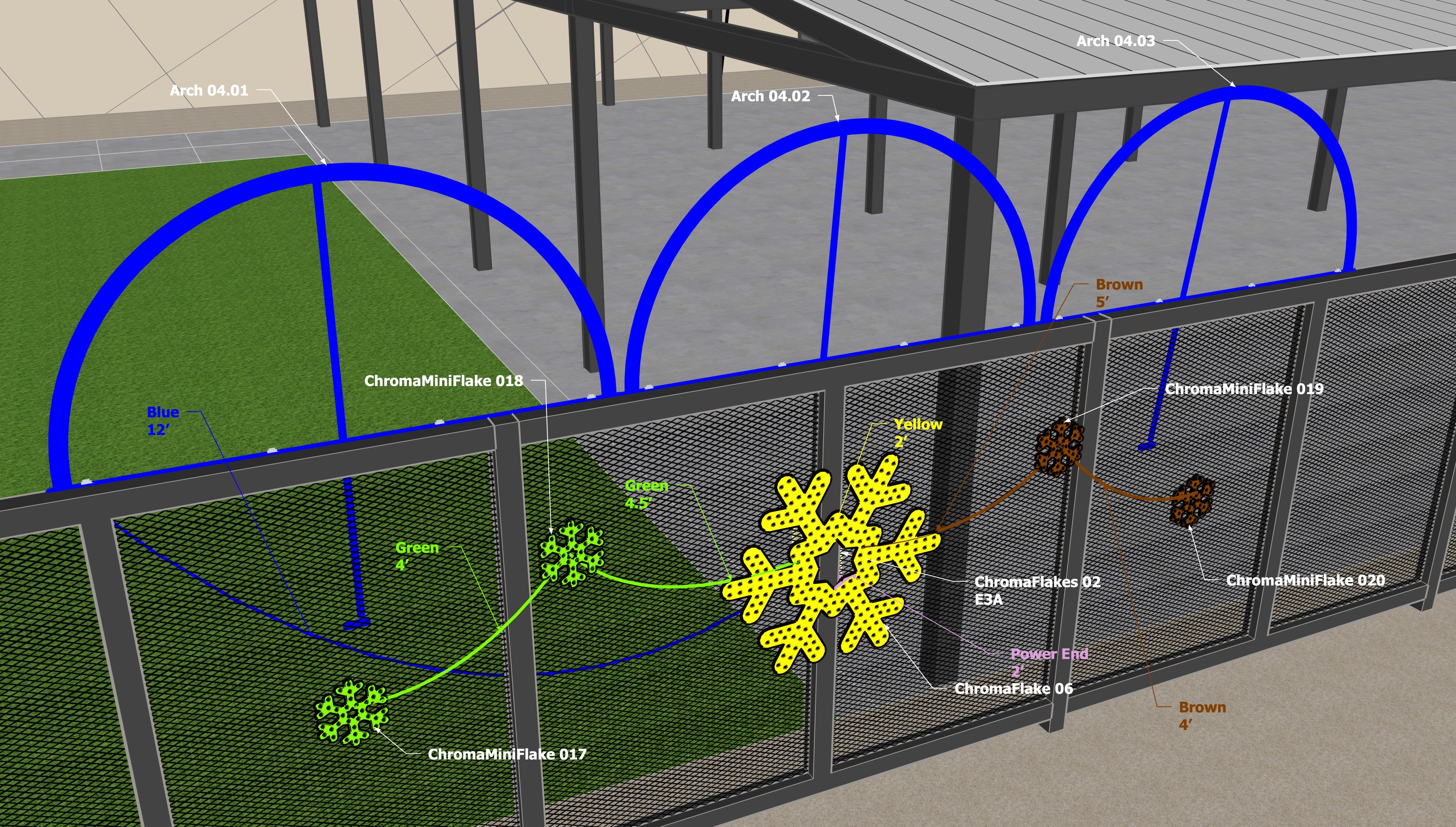

Setup Photos image 1 for controller E3A

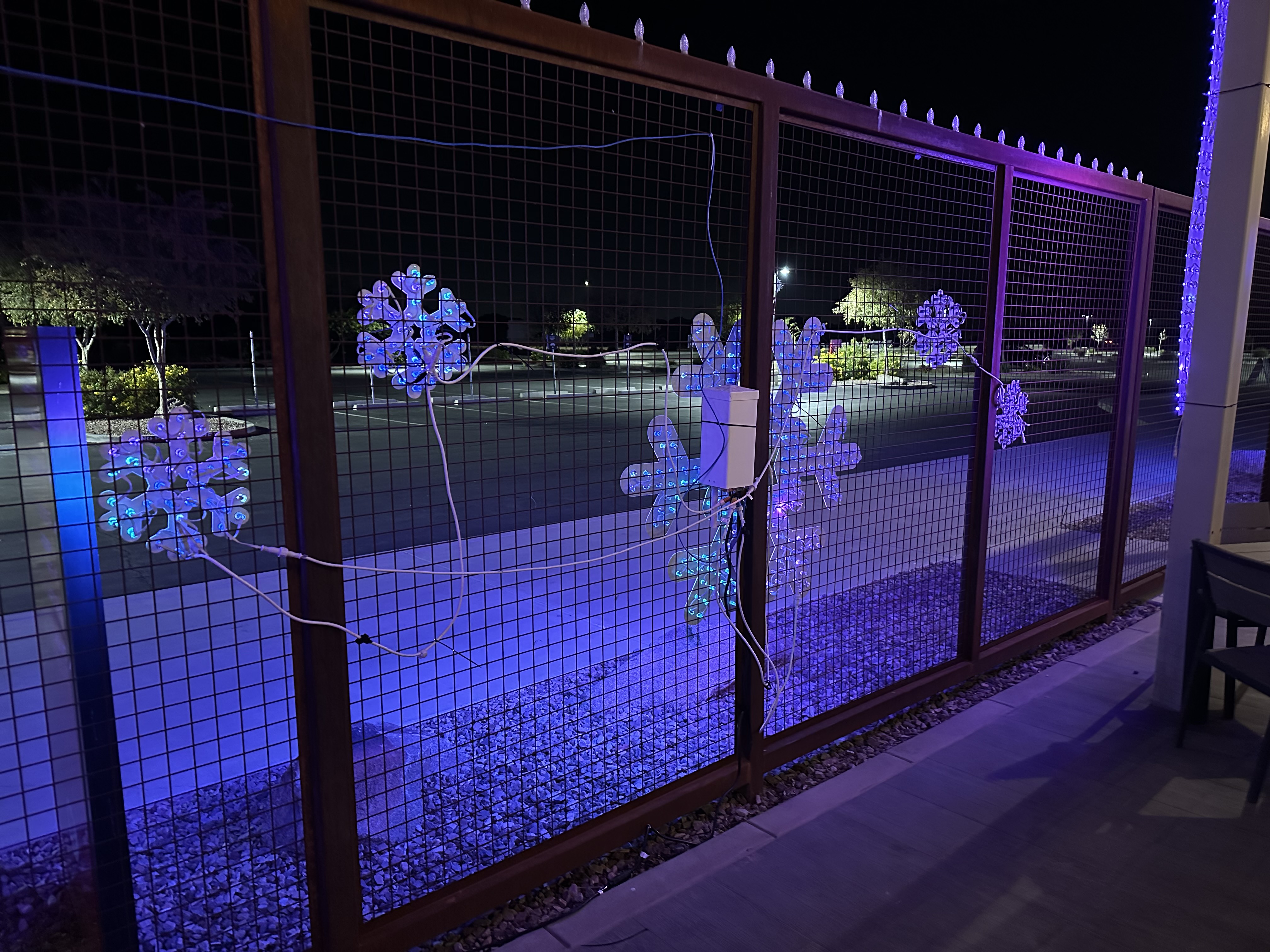

Reference Photos image 1 for controller E3A

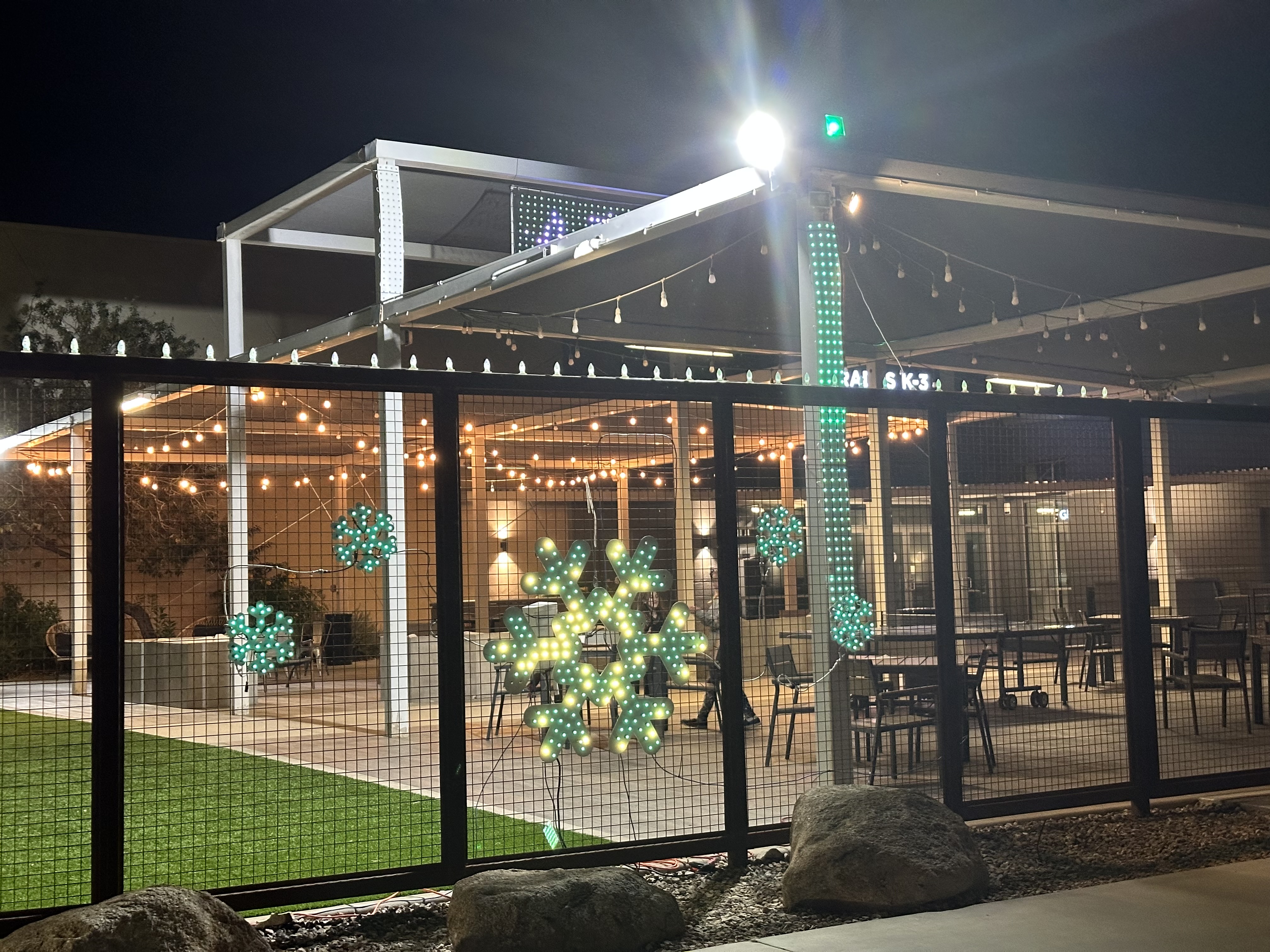

Reference Photos image 2 for controller E3A

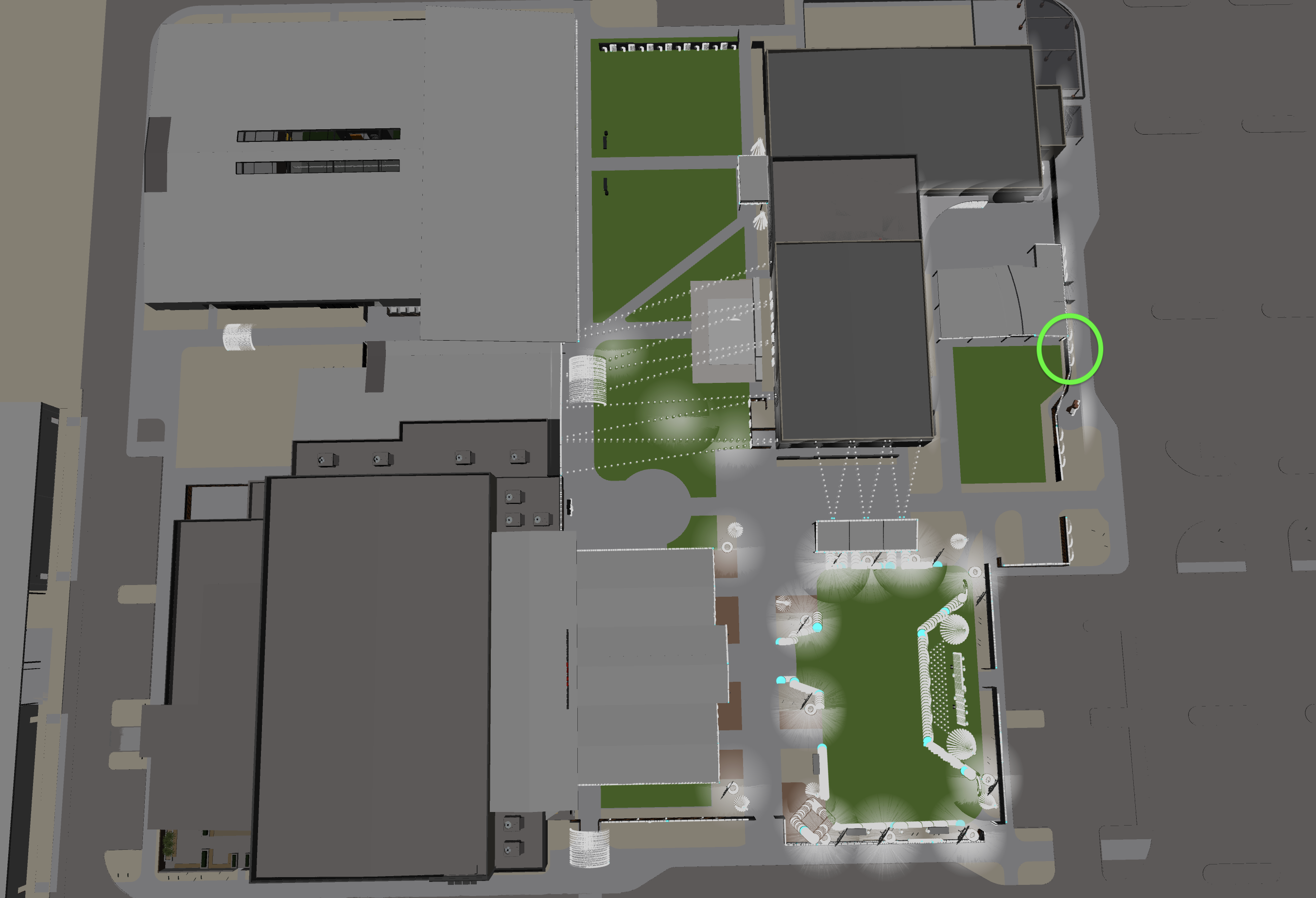

Site Map image 1 for controller E3A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8PB.E	17	17A	E3A	3		E3A		K8PB.E	640	222	222	418	E3A	12	750	0.6	50	66.6	155.7	ChromaFlakes 02	2	ChromaFlake 06	222	2	Power End
K8PB.E	18	18A	E3A	3		E3A			640	153	153	487	E3A	12	750	0.6	50	45.9		ChromaFlakes 02	10	Arch 04.01	51	0	Arch 04.02	51	0	Arch 04.03	51
K8PB.E	19	19A	E3A	3		E3A			640	72	72	568	E3A	12	750	0.6	50	21.6		ChromaFlakes 02	4.5	ChromaMiniFlake 018	36	4	ChromaMiniFlake 017	36
K8PB.E	20	20A	E3A	3		E3A			640	72	72	568	E3A	12	750	0.6	50	21.6		ChromaFlakes 02	5	ChromaMiniFlake 019	36	4	ChromaMiniFlake 020	36

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
