Controller K1

Location: ChromaCanes 03

Gallery

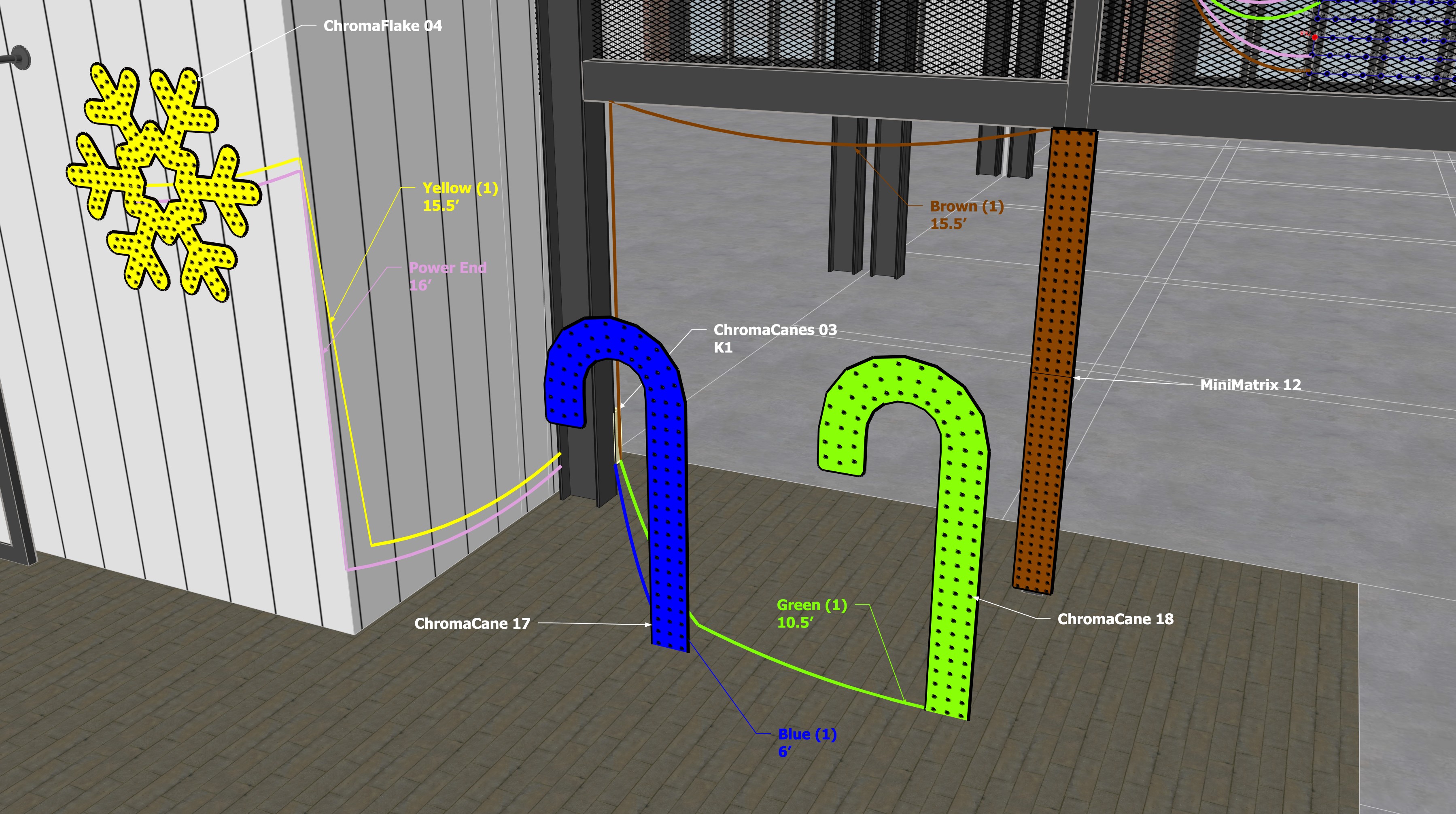

Setup Photos image 1 for controller K1

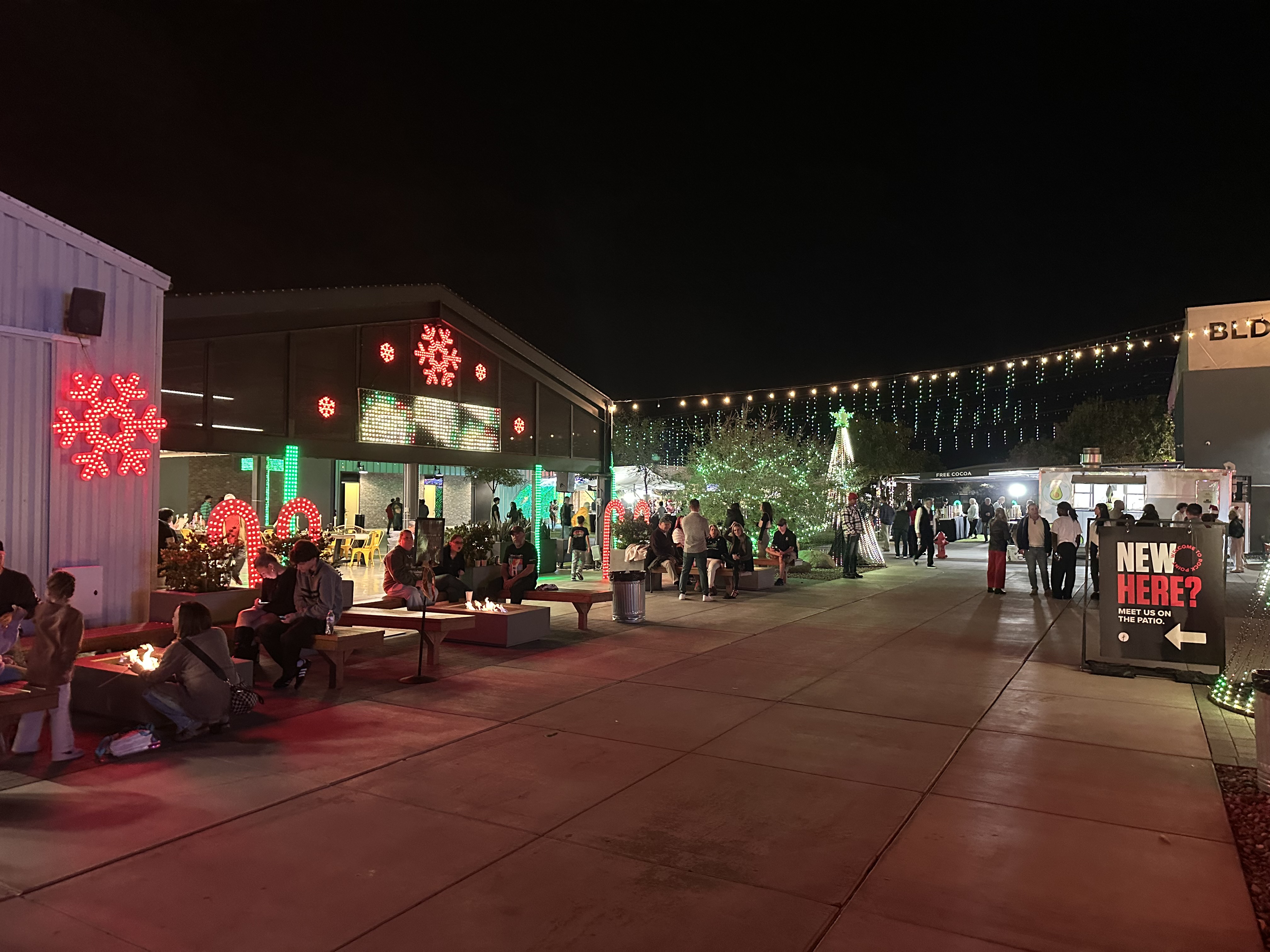

Reference Photos image 1 for controller K1

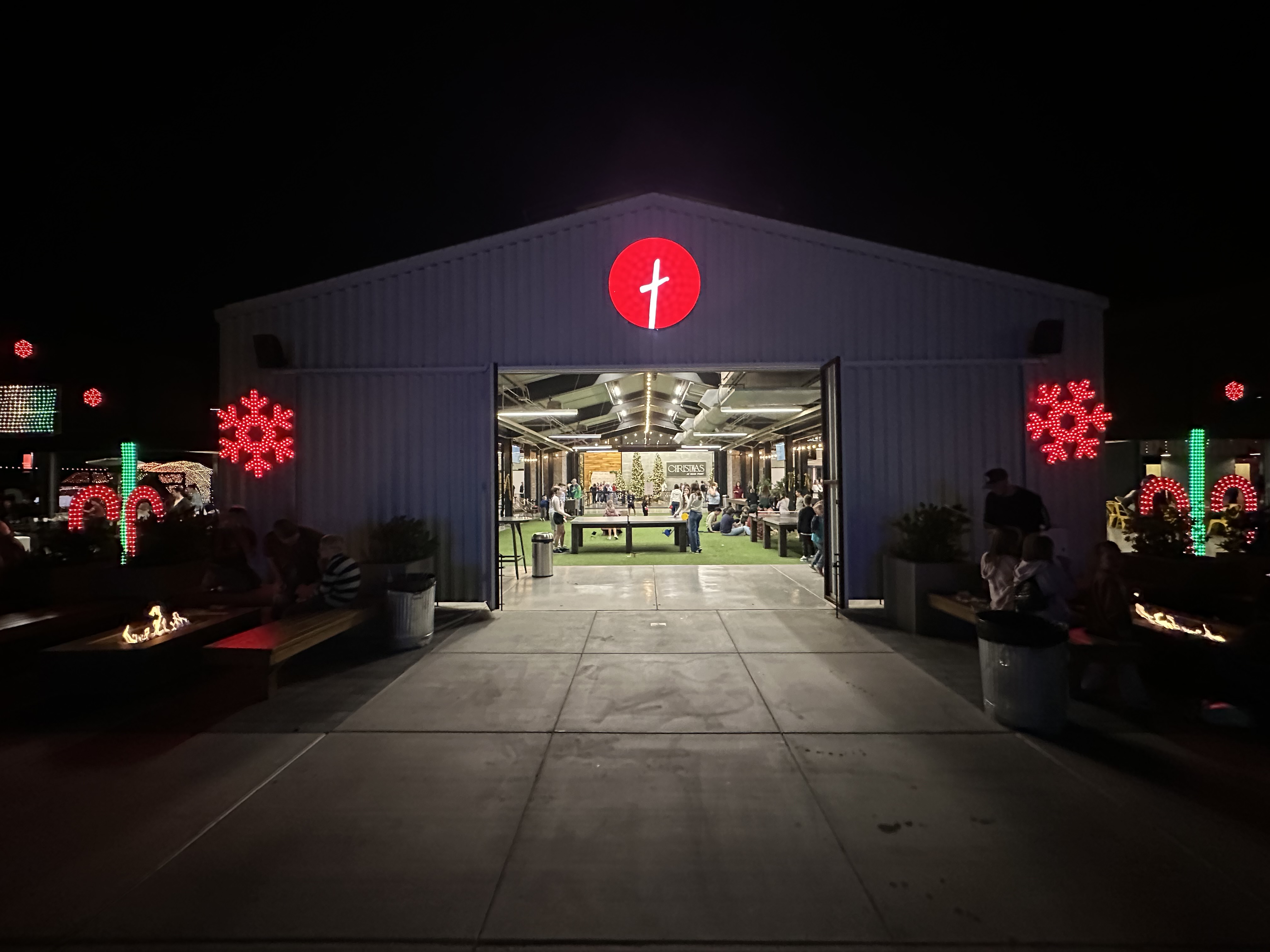

Reference Photos image 2 for controller K1

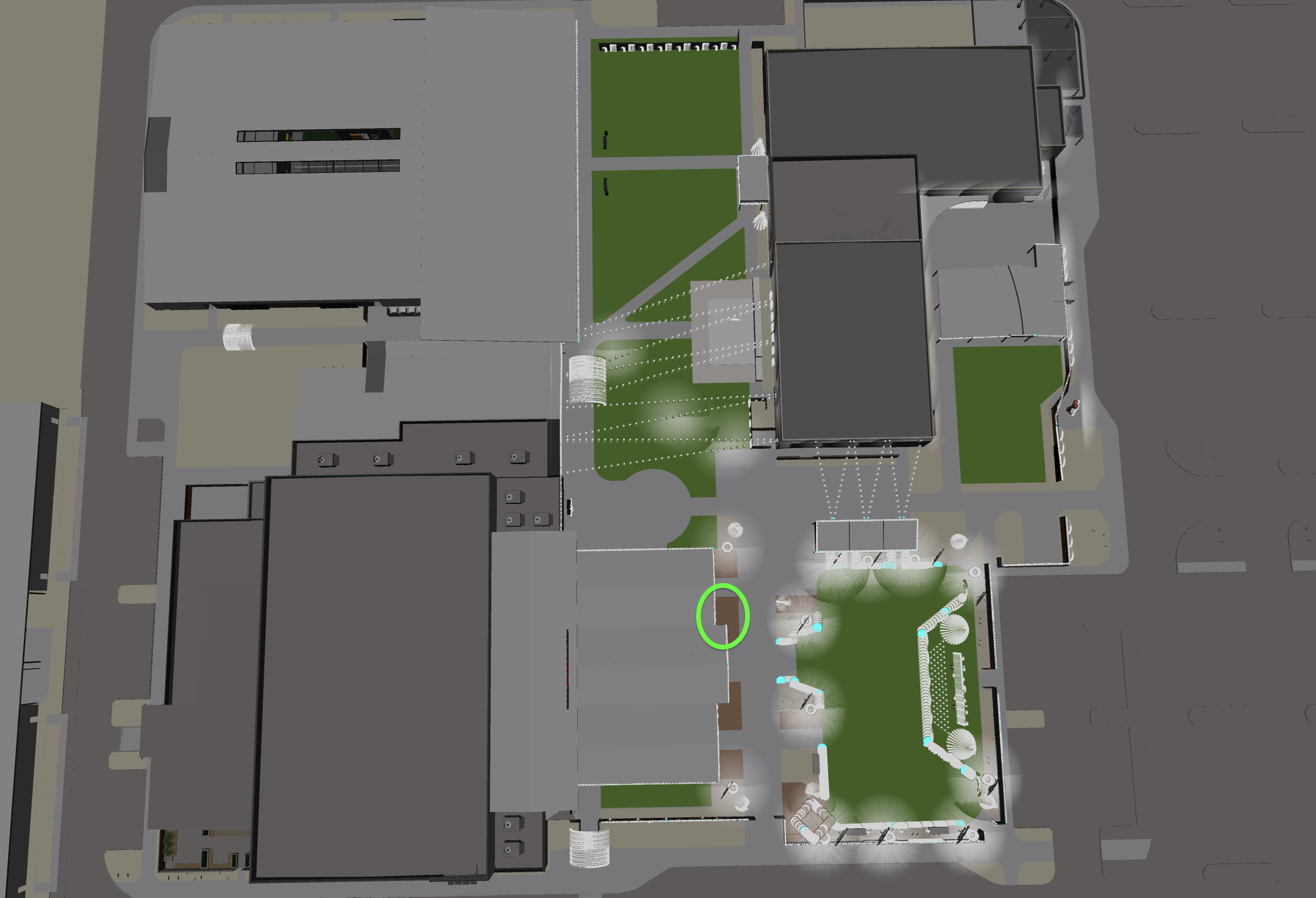

Site Map image 1 for controller K1

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Power
K40D.K	1	1	K1	1	K1			E177	640	100	100	540	K1	12	750	0.6	50	30	139.8	ChromaCanes 03	15.5	ChromaFlake 04.1	100	0	Power Cut		0	ChromaFlake 04.2	122	16	Power End
K40D.K	2	2	K1	1	K1				640	99	99	541	K1	12	750	0.6	50	29.7		ChromaCanes 03	6	ChromaCane 17	99
K40D.K	3	3	K1	1	K1				640	99	99	541	K1	12	750	0.6	50	29.7		ChromaCanes 03	12	ChromaCane 18	99
K40D.K	4	4	K1	1	K1				640	168	168	472	K1	12	750	0.6	50	50.4		ChromaCanes 03	15.5	MiniMatrix 12.1	84	0	MiniMatrix 12.2	84

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
