Controller K4C

Location: Roof 08

Gallery

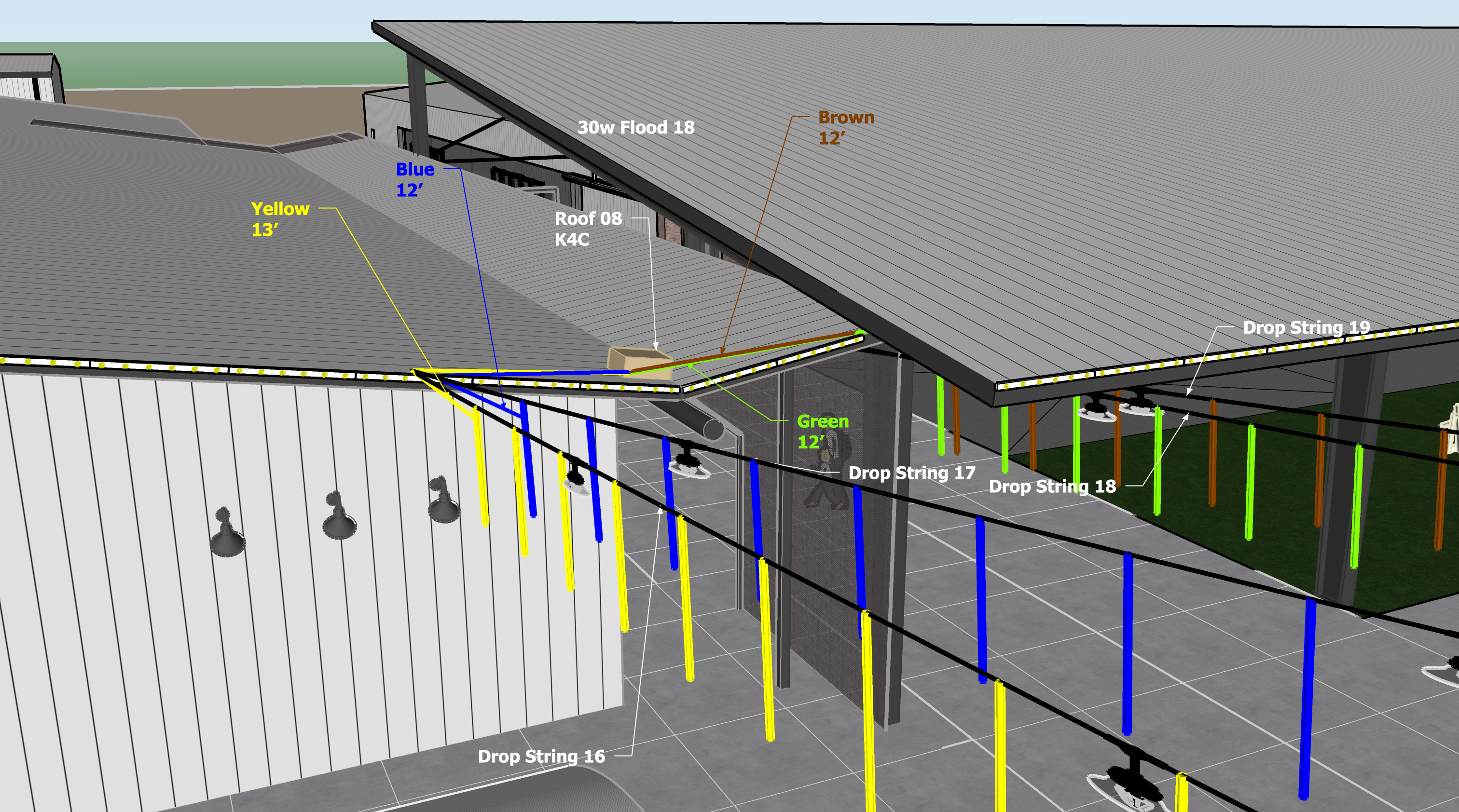

Setup Photos image 1 for controller K4C

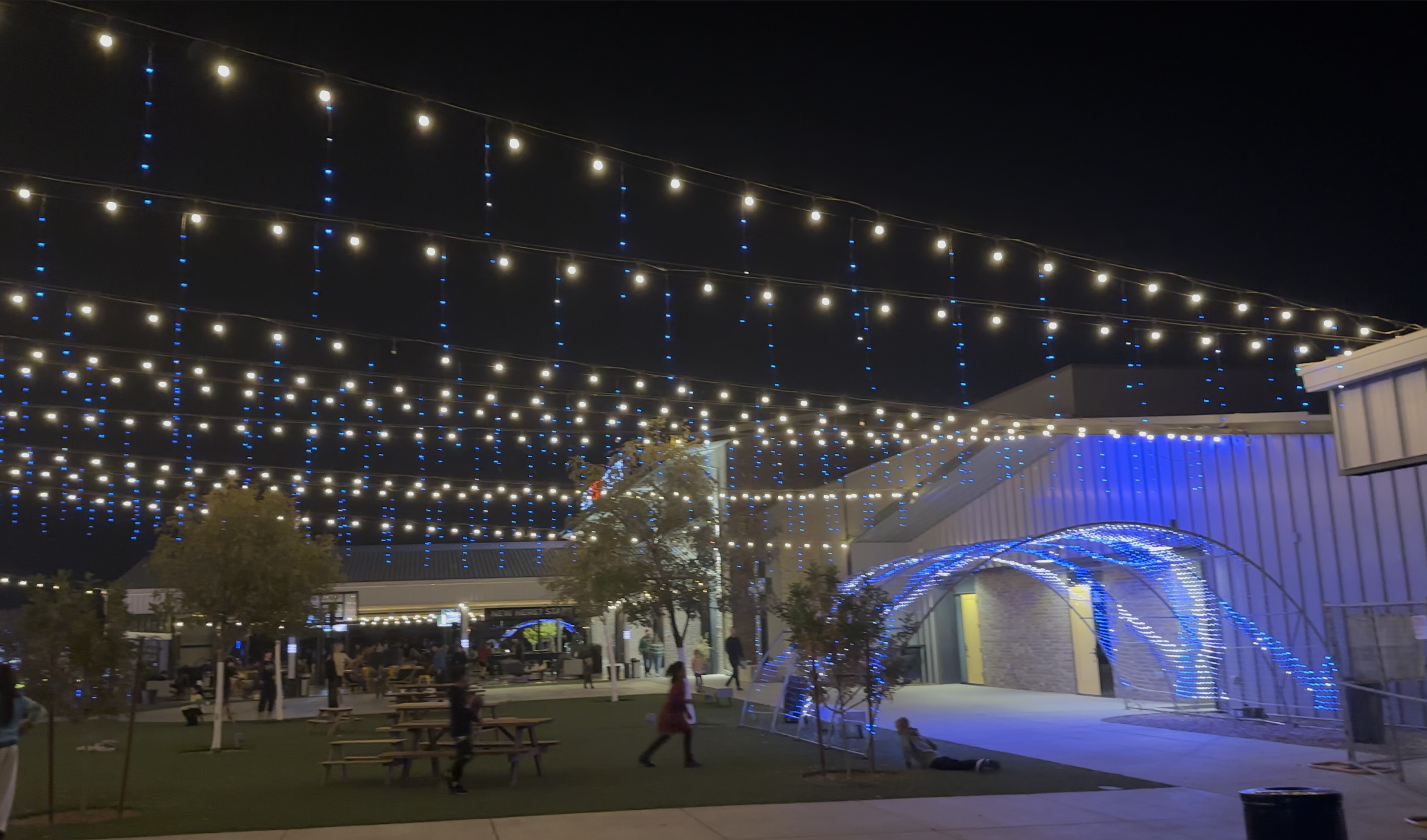

Reference Photos image 1 for controller K4C

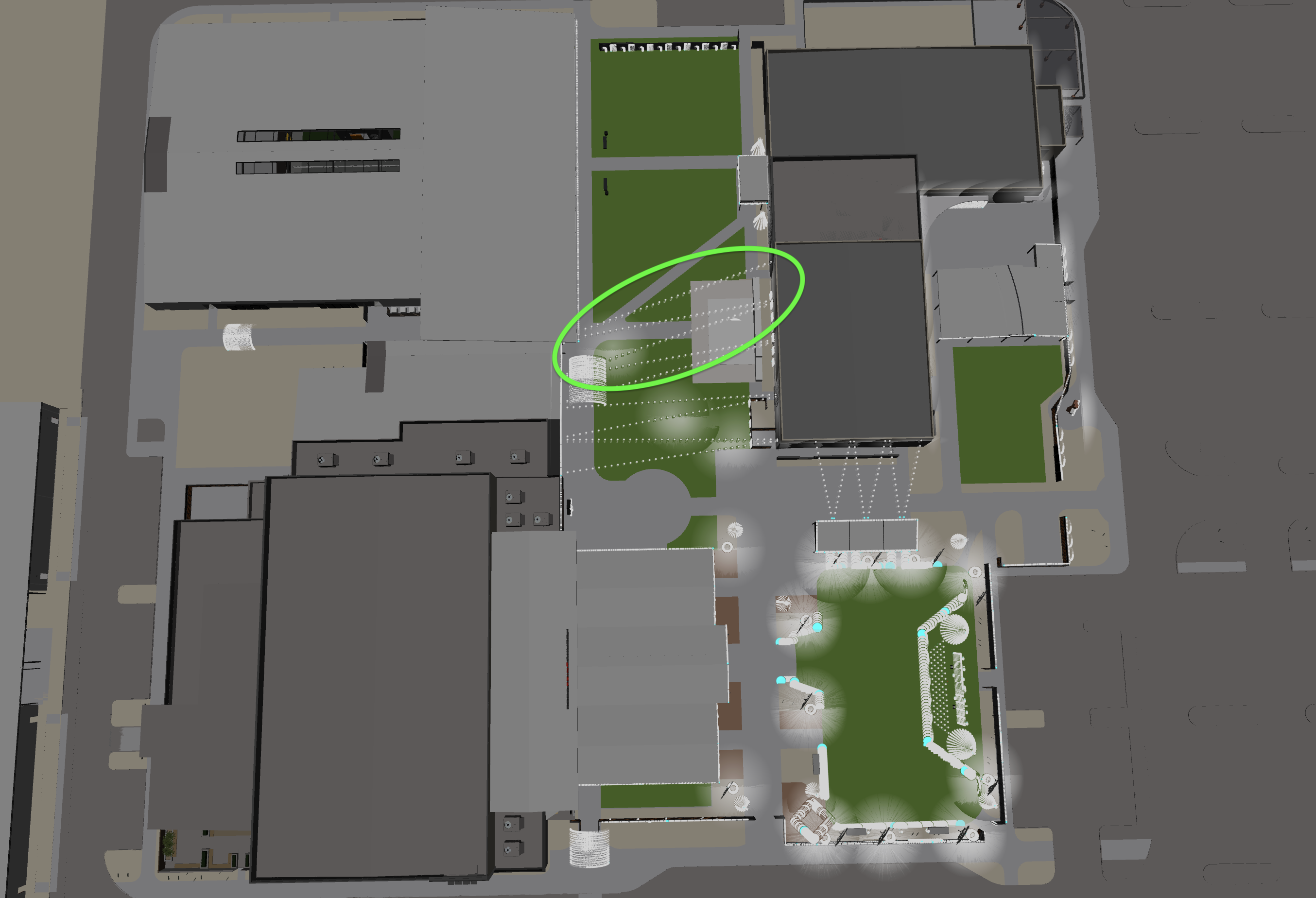

Site Map image 1 for controller K4C

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count
K40D.K	13	13C	K4C	4		K4C			640	525	175	115	K4C	12	750	0.1	50	8.75	35	Roof 08	13	Drop String 16	175
K40D.K	14	14C	K4C	4		K4C			640	525	175	115	K4C	12	750	0.1	50	8.75		Roof 08	12	Drop String 17	175
K40D.K	15	15C	K4C	4		K4C			640	352	175	288	K4C	12	750	0.1	50	8.75		Roof 08	12	Drop String 18	175
K40D.K	16	16C	K4C	4		K4C			640	177	175	463	K4C	12	750	0.1	50	8.75		Roof 08	12	Drop String 19	175

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
