Controller O2C~O2E

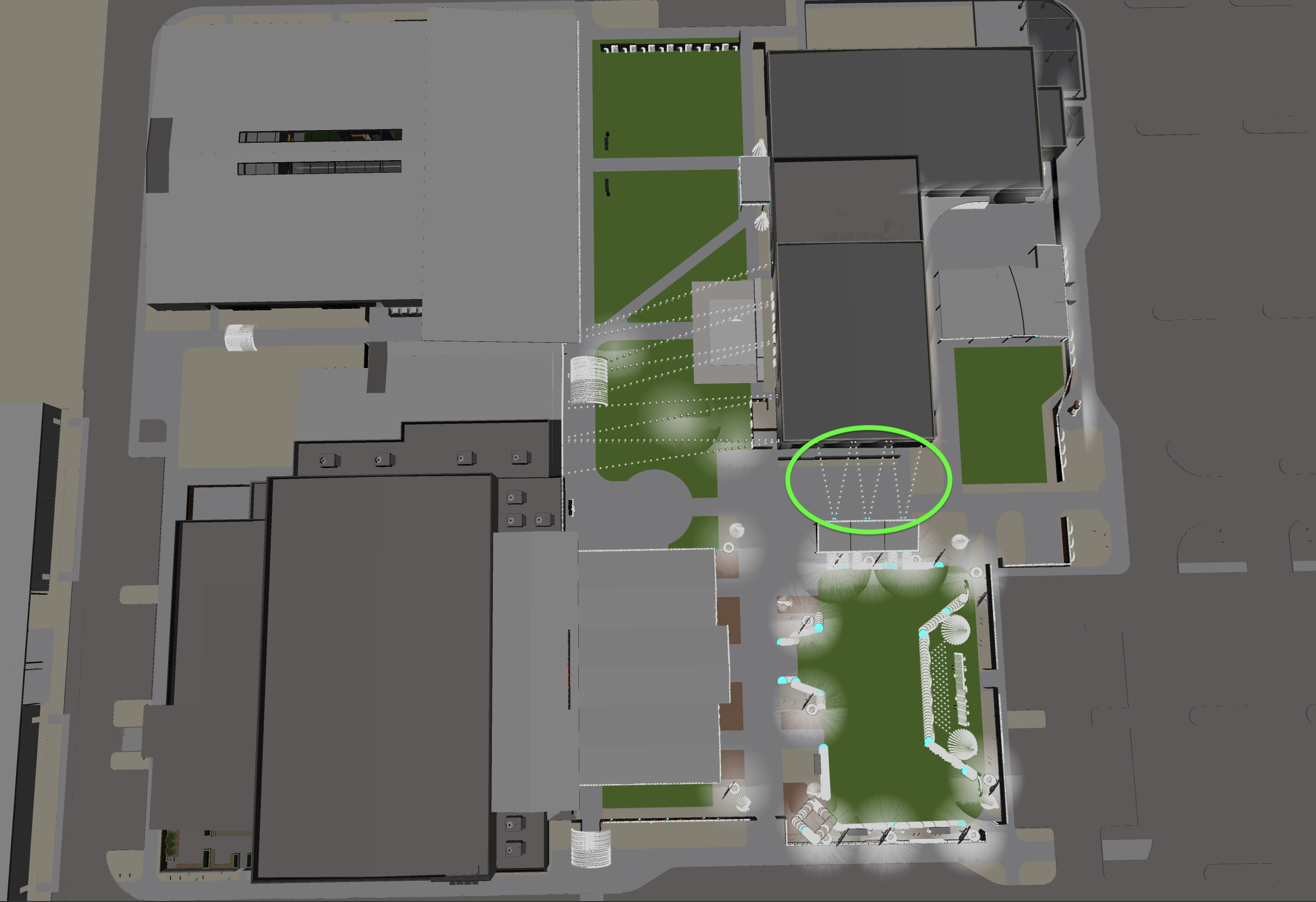

Location: Ramada

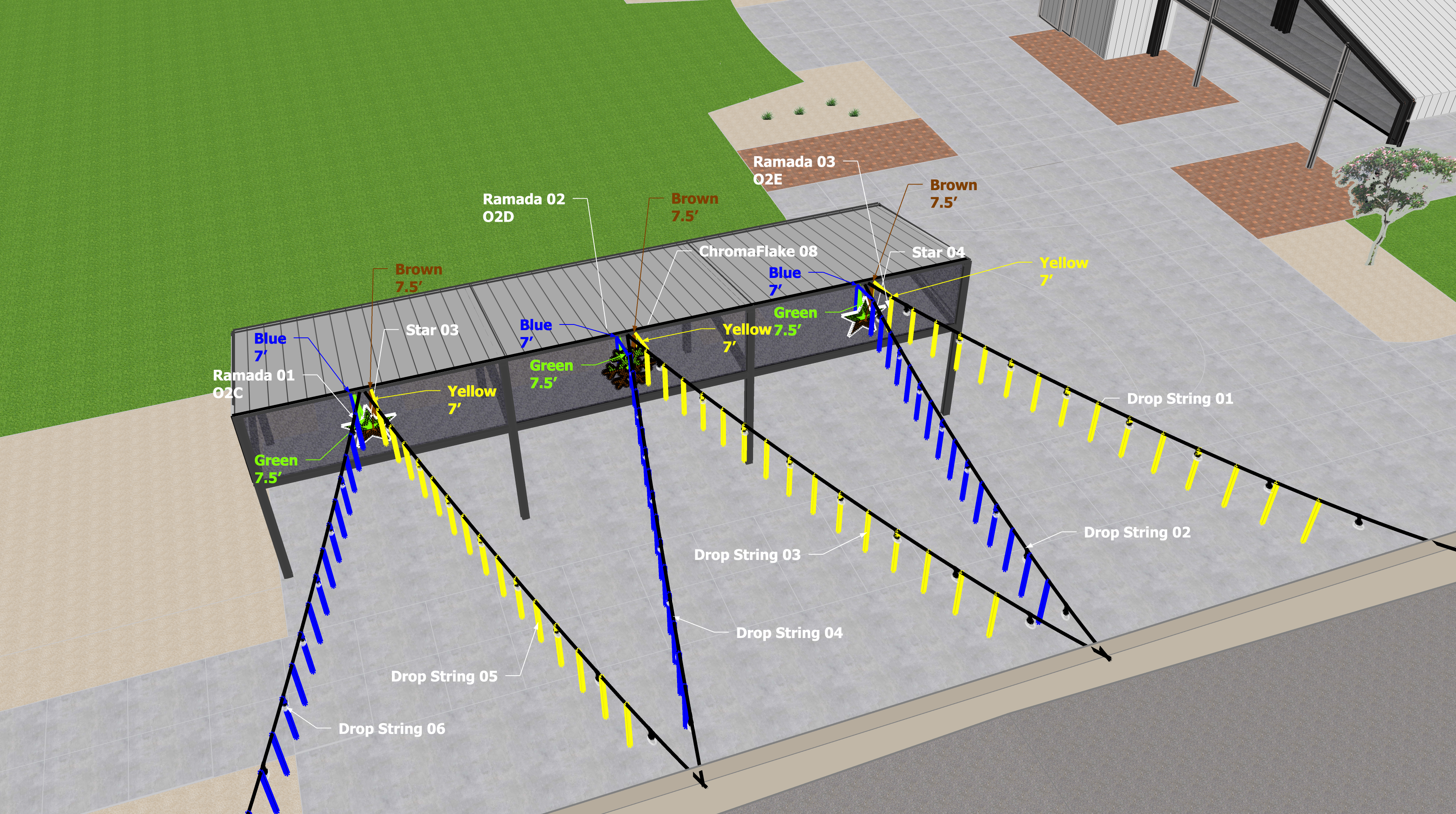

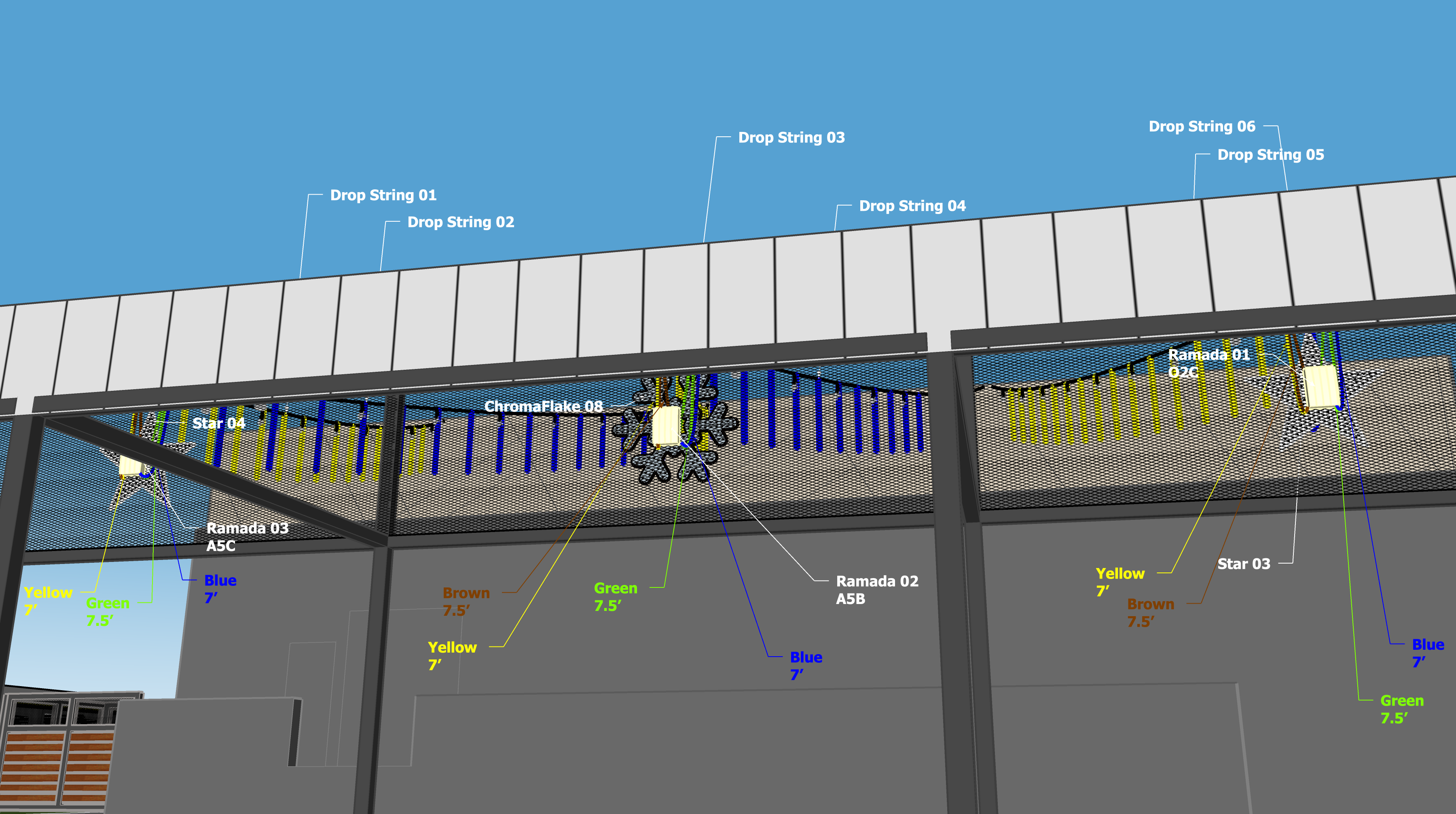

Gallery

Controller	Controller Port	Mode	Receiver	Controller Output	Smart Receiver	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count
K8B.O	17	17A	O3A	3	O3A	O2B	640	450	150	190	O3A	12	750	0.6	50	45	144	Ramada 01	7	Drop String 05	150
K8B.O	18	18A	O3A	3	O3A		640	450	150	190	O3A	12	750	0.6	50	45		Ramada 01	7	Drop String 06	150
K8B.O	19	19A	O3A	3	O3A		640	402	180	238	O3A	12	750	0.6	50	54		Ramada 01	7.5	Star 03	180
K8B.O	20	20A	O3A	3	O3A		640	180	0	460	O3A	12	750	0.6	50	0		Ramada 01
K8B.O	17	17B	O3B	3	O3B	O3A	640	450	150	190	O3B	12	750	0.6	50	45	156.6	Ramada 02	7	Drop String 03	150
K8B.O	18	18B	O3B	3	O3B		640	450	150	190	O3B	12	750	0.6	50	45		Ramada 02	7	Drop String 04	150
K8B.O	19	19B	O3B	3	O3B		640	402	222	238	O3B	12	750	0.6	50	66.6		Ramada 02	7.5	ChromaFlake 08	222
K8B.O	20	20B	O3B	3	O3B		640	180	0	460	O3B	12	750	0.6	50	0		Ramada 02
K8B.O	17	17C	O3C	3	O3C	O3B	640	450	150	190	O3C	12	750	0.6	50	45	144	Ramada 03	7	Drop String 01	150
K8B.O	18	18C	O3C	3	O3C		640	450	150	190	O3C	12	750	0.6	50	45		Ramada 03	7	Drop String 02	150
K8B.O	19	19C	O3C	3	O3C		640	402	0	238	O3C	12	750	0.6	50	0		Ramada 03
K8B.O	20	20C	O3C	3	O3C		640	180	180	460	O3C	12	750	0.6	50	54		Ramada 03	7.5	Star 04	180
