Controller R2E

Location: Photo Booth

Gallery

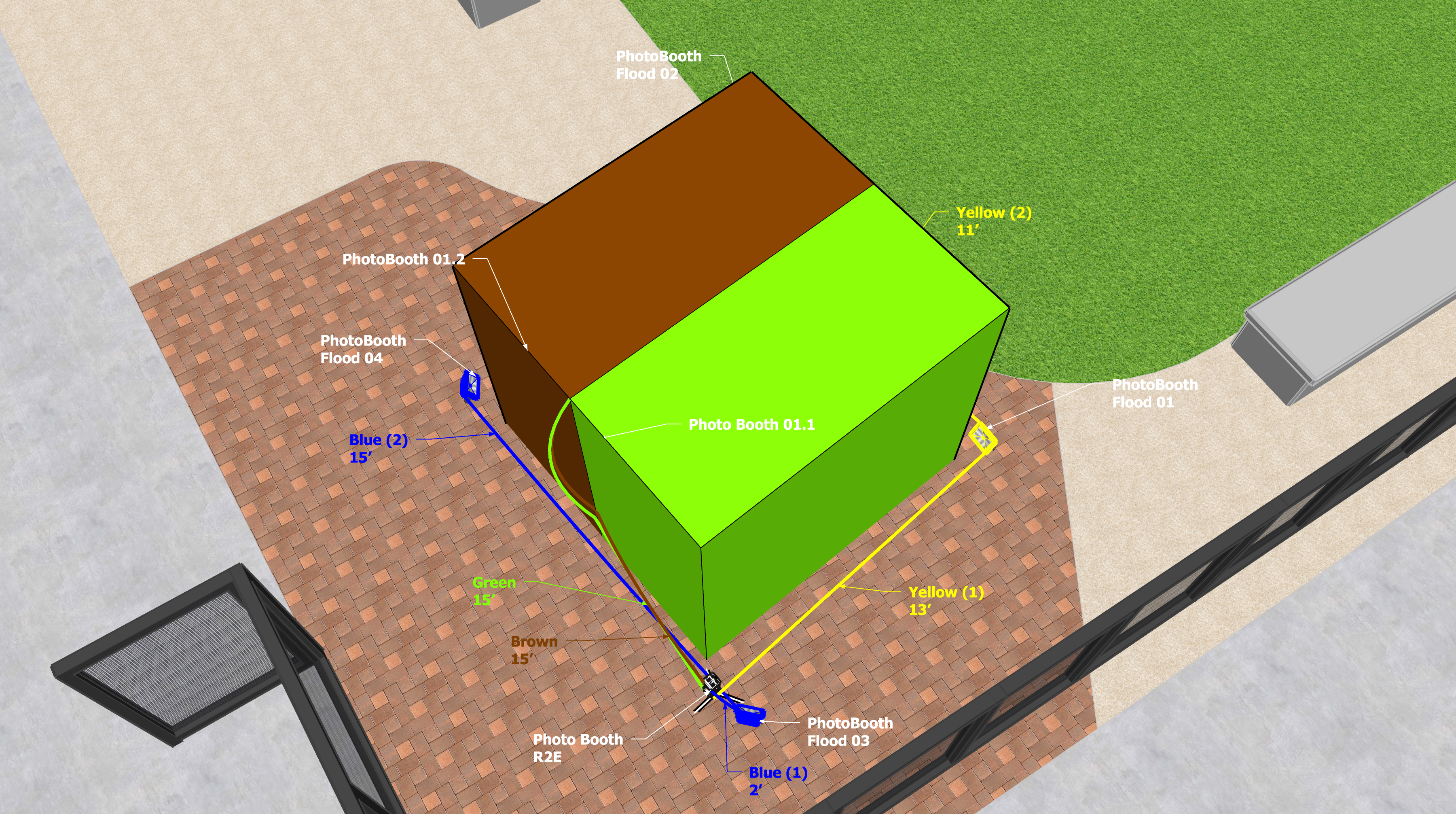

Setup Photos image 1 for controller R2E

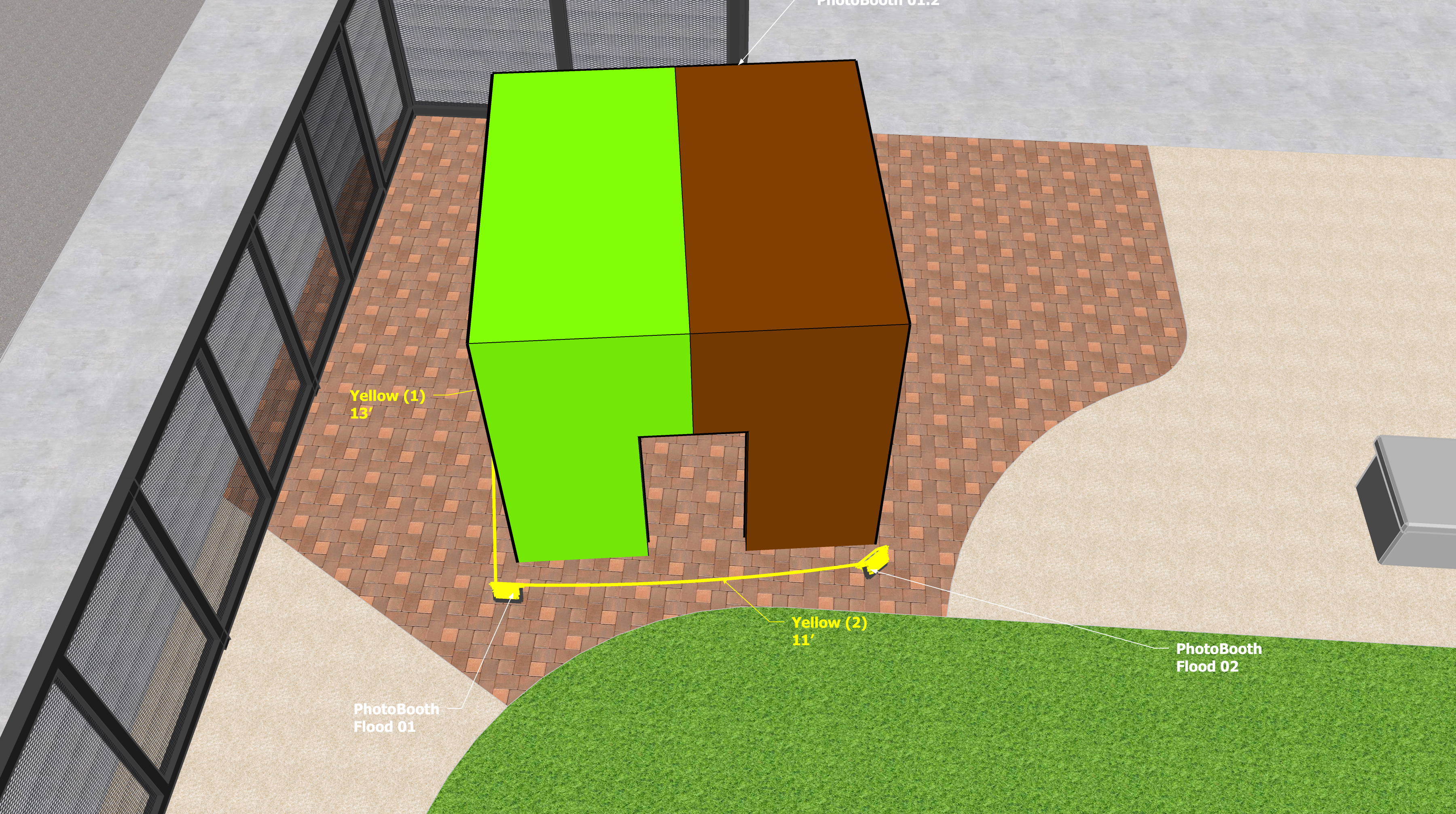

Setup Photos image 2 for controller R2E

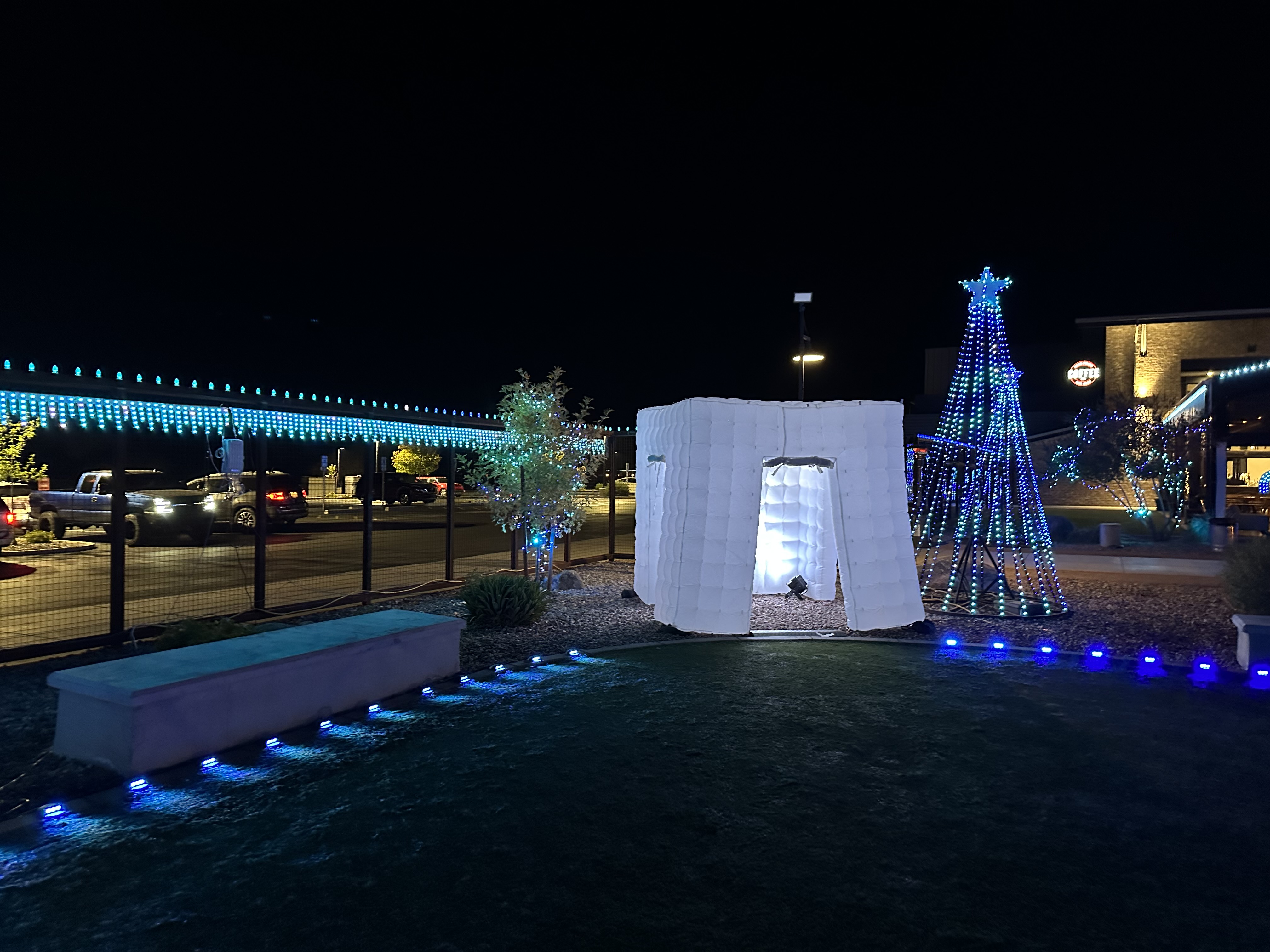

Reference Photos image 1 for controller R2E

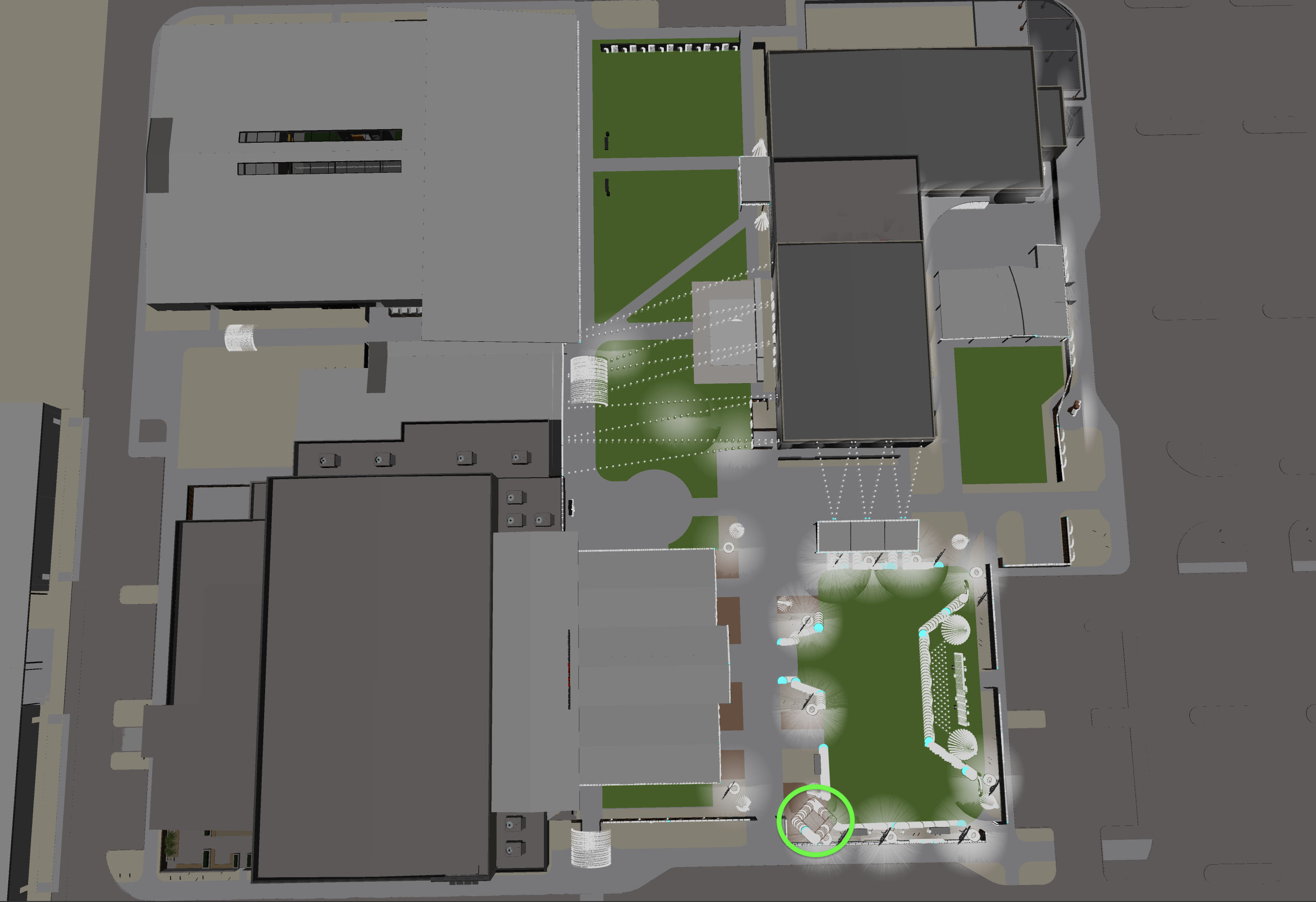

Site Map image 1 for controller R2E

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.R	13	13E	R2E	2		R2E		R2D	640	603	2	37	R2E	12	750	30	75	45	114	Photo Booth 01	13	PhotoBooth Flood 01	1	11	PhotoBooth Flood 02	1
K8B.R	14	14E	R2E	2		R2E			640	452	2	188	R2E	12	750	30	75	45		Photo Booth 01	2	PhotoBooth Flood 03	1	15	PhotoBooth Flood 04	1
K8B.R	15	15E	R2E	2		R2E			640	501	40	139	R2E	12	750	0.6	50	12		Photo Booth 01	15	PhotoBooth 01.1	40
K8B.R	16	16E	R2E	2		R2E			640	639	40	1	R2E	12	750	0.6	50	12		Photo Booth 01	15	PhotoBooth 01.2	40

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
